You’ll find heavy-duty metal detectors engineered with balanced coil technology that processes microvolt-level signals to detect ferrous particles down to 1.0mm and stainless steel to 1.8mm at speeds reaching 1,500 m/min. They’re constructed from AISI 316L stainless steel with IP65-rated enclosures, featuring multi-frequency operation (35-600 kHz) and automated rejection systems that integrate seamlessly with existing conveyor lines. These systems meet FDA 21 CFR Part 11 compliance and operate as HACCP Critical Control Points. Below, you’ll discover how advanced signal processing and industry-specific configurations optimize contamination control.
Key Takeaways
- Heavy-duty metal detectors use balanced coil technology with multi-frequency operation (35-600 kHz) to detect ferrous, non-ferrous, and stainless steel contaminants.
- Constructed from corrosion-resistant stainless steel (AISI 316L, SS304) with IP65-rated enclosures for harsh industrial environments with moisture and chemicals.
- Detects metal particles as small as 1.0mm ferrous and 1.8mm stainless steel at speeds up to 1,500 m/min across various industries.
- Seamlessly integrates with existing conveyor systems using split-coil configurations, modular designs, and connectivity options including Ethernet and OPC-UA.
- Complies with ISO 9001, FDA 21 CFR Part 11, and HACCP standards with continuous environmental monitoring for reliable critical control point validation.
Key Features of Industrial-Grade Metal Detection Systems
Modern industrial metal detection systems deliver precision contamination control through four integrated technological pillars: sensitivity engineering, robust construction, intelligent interfaces, and enterprise connectivity.
You’ll detect ferrous contaminants as small as 1.0mm and stainless steel particles down to 1.8mm across all metal types—aluminum, brass, copper, iron, nickel, steel, tin. AISI 316L stainless steel construction with IP65 protection guarantees corrosion resistance in demanding environments.
User ergonomics are optimized through full-color touchscreen controls with automatic sensitivity adjustment, eliminating complex calibration procedures. Aesthetic design incorporates polished 304 stainless steel sensing heads with intuitive icon-driven interfaces.
You’ll access 100 product presets, 1000-event data logging, and FDA 21 CFR Part 11 compliance. Enterprise connectivity includes RS232, Ethernet/IP, Profinet, Profibus, EtherCAT, and Modbus-TCP protocols for seamless facility integration. Digital signal analysis adapts detection parameters to match specific product speeds and metal fragment characteristics for optimized performance. Automatic environmental compensation adjusts for thermal, mechanical, and electromagnetic interference to maintain consistent detection accuracy.
Technical Specifications and Performance Capabilities
Industrial metal detection systems achieve contamination control through quantifiable performance parameters that define operational boundaries and detection thresholds.
Contamination control relies on precise performance parameters that establish clear detection thresholds and define system operational boundaries.
You’ll find detection speeds spanning 1 to 1,500 m/min with sensitivity areas from 1,300mm to 5,300mm, accommodating apertures in 3-inch through 10-inch configurations.
These systems detect millimeter-sized ferrous, non-ferrous, and stainless steel spheres across product widths reaching 1,900mm.
Material compatibility extends to AISI 316L stainless steel construction for corrosive environments, while multi-spectrum technology reduces false rejects.
Internal memory stores 1,000 events and 20 product configurations with FDA 21 CFR Part 11 compliance and ISO 9001 certification.
You’ll access data through HTML, CSV, and PDF exports.
Connectivity options include Bluetooth, RS232, and multiple fieldbus protocols, with Ethernet network link capabilities enabling remote management and system integration.
Adjustable secondary sensitivity allows customization to detect or ignore specific metals and materials, preventing unnecessary belt stoppages during operation.
Warranty coverage specifications vary by manufacturer and application requirements.
Advanced Detection Principles and Sensitivity Standards
At the core of contamination detection lies the balanced coil principle, where electromagnetic fields interact with metal particles through precisely calibrated transmitter and receiver configurations.
You’ll achieve detection accuracy through opposition-connected receiver coils that maintain zero signal until contaminants create asymmetrical field disruptions.
Signal amplification transforms microvolt-level distortions into actionable data, while strategic coil shielding eliminates electromagnetic interference from external sources. This approach directs the magnetic field away from structural metal components that would otherwise compromise detection reliability.
Sensitivity performance indicators:
- Ferrous detection: Low-frequency optimization generates maximum signal response from magnetic field alterations
- Stainless steel capability: High-frequency operation compensates for weak conductivity through enhanced eddy current detection
- Multi-frequency systems: 35-600 kHz range simultaneously targets diverse metal types with precision
- Spherical measurement standards: Diameter-based metrics establish quantifiable performance benchmarks across metal categories
- Phase discrimination: Polar graph analysis separates genuine contaminants from product effects
Receiver coils detect distortions in the transmitter field as metal contaminants pass through the aperture, triggering alarm sequences when threshold values are exceeded.
Materials and Construction for Harsh Environments
Detection capabilities mean nothing if environmental conditions compromise the equipment’s operational integrity.
Equipment durability determines whether your detection investment survives real-world conditions or fails when environmental factors exceed design specifications.
You’ll find SS304 stainless steel construction throughout control panels and housing, delivering corrosion resistance where moisture and chemicals threaten equipment longevity. Material durability extends to IP65-rated enclosures that block dust and water ingress in processing environments.
Your detector’s structural resilience comes from gold-plated switches and SMT components that withstand vibration and electromagnetic interference near frequency converters.
High-temperature PVC probes operate in extreme heat without degradation, while EC and FDA-approved materials ensure compliance with food safety standards.
You’re getting modular, field-replaceable electronics housed in sealed metal cabinets—protection that maintains high-sensitivity detection through continuous thermal cycling, chemical exposure, and high-pressure operations without performance assure. Manufacturing processes meet ISO 9001 certification standards, guaranteeing consistent quality control throughout production. The sand blasted finish on stainless steel surfaces provides additional durability and resistance against industrial wear in demanding production facilities.
Conveyor Belt Integration and Automated Rejection Systems
How do you maintain continuous production flow while ensuring every contaminated product leaves your line? Your metal detector integrates directly into existing conveyor systems through split-coil designs—no belt cutting required.
Conveyor alignment determines detection sensitivity; smaller apertures deliver higher precision. When contamination’s detected, automated rejection mechanisms remove products instantly through belt stops, air blasts, or pneumatic pushers.
Rejection synchronization tracks product transit timing, ensuring accurate ejection of compromised items while your line continues operating. The conveyor control unit configures with various reject systems to accommodate diverse product ranges across your production schedule.
Critical integration components include:
- Modular tunnel detectors fitting seamlessly around your existing conveyors with metal-free wooden zones
- Split-coil configurations retrofitting without production shutdown
- Dual-bin reject systems separating contaminated products automatically
- Verification sensors confirming successful ejection and monitoring container availability
- All-in-one systems combining detection, transport, and rejection in unified configurations
Your system maintains HACCP compliance while maximizing throughput efficiency. Advanced models feature digitally adjustable belt speed for enhanced operational flexibility across different product types.
Multi-Frequency Technology and Digital Signal Processing
Your metal detector’s ability to identify contaminants while ignoring product signals depends on simultaneous multi-frequency operation—a technology that transmits and receives multiple frequencies continuously across a broad spectrum. This frequency synergy enables up to five adjustable frequencies working in concert, reducing metal escape probability by orders of magnitude while adapting to varying soil and product conditions.
Multi-frequency operation transmits and receives across a broad spectrum simultaneously, enabling superior contaminant detection while automatically compensating for product signal interference.
ARM processors drive digital signal processing through multiple channels, delivering signal enhancement that cancels product effects from temperature, moisture, and orientation variations.
The system continuously monitors transmission and reception characteristics, compensating for environmental factors in real-time. You’ll achieve 100% detection sensitivity increases through divergent field technology, identifying stainless steel, ferrous, non-ferrous metals, and ultra-thin contaminants that conventional single-frequency systems miss.
Advanced autolearn functions operate during production without interrupting your workflow.

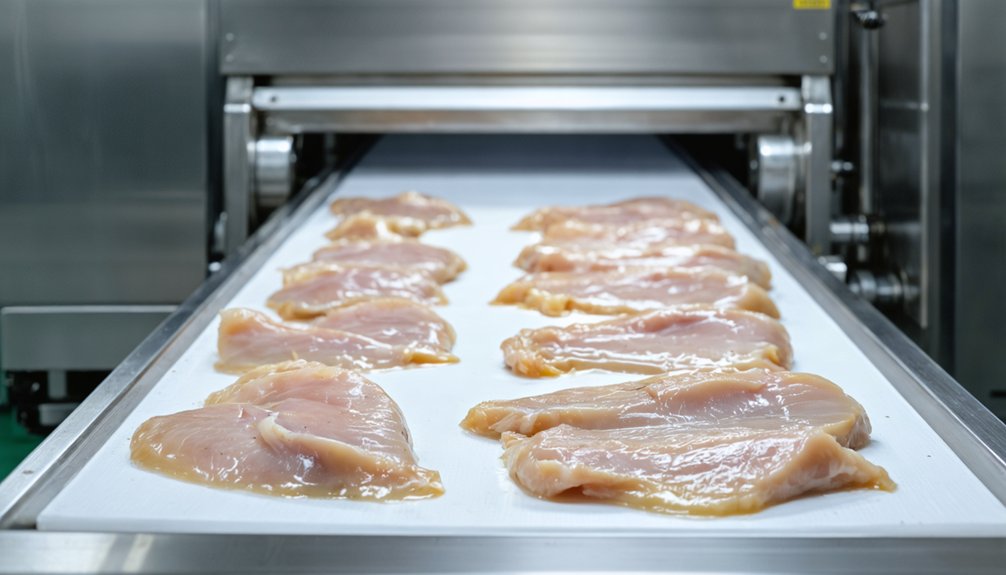

Food Safety Compliance and HACCP Validation
When implementing metal detection systems, compliance with HACCP principles transforms your equipment from a quality checkpoint into a validated Critical Control Point (CCP) that regulatory agencies and certification bodies will scrutinize.
Metal detection calibration provides objective evidence that your system maintains critical limits—no detectable fragments passing through.
HACCP compliance demands documented verification procedures testing ferrous, non-ferrous, and stainless steel sensitivity standards against your product specifications.
Your calibration protocols must demonstrate:
- Certified test pieces matching fragment sizes from 0.3 to 7 mm based on contaminant risk profiles
- Electromagnetic shielding eliminating interference that compromises detection accuracy
- Product effect compensation allowing detection of metal while ignoring conductive packaging materials
- Continuous monitoring records proving 100% production coverage through functioning detectors
- Validation documentation supporting GFSI, BRCGS, and SQF audit requirements
This systematic approach prevents recalls while maintaining operational autonomy.
Industry Applications Across Manufacturing Sectors
Beyond food safety applications, metal detection technology serves critical protective functions across mining, wood processing, plastics recycling, automotive manufacturing, and bulk material handling sectors where equipment damage from tramp metal costs operations millions in downtime and component replacement.
In mining operations, you’ll find pulse induction systems like the Tectron DMD 25 detecting manganese alloy bucket teeth and ferrous contaminants before they reach crushers.
Wood processing facilities deploy surround metal detectors scanning whole logs to protect chippers operating in harsh mill environments.
The Model 5500 E6 delivers industry-leading sensitivity for plastic and glass recycling applications, removing contaminants from pneumatic lines.
Environmental testing validates multi-frequency technology eliminating false positives in tire manufacturing, where SurroundScan Defender III systems protect extruders while maintaining production flow.
Custom search head designs optimize metal detection across demanding industrial applications requiring specialized sensitivity specifications.
Remote Management and Connectivity Options
You’ll need robust network integration to connect your heavy-duty metal detectors to centralized monitoring systems through Ethernet protocols, OPC-UA APIs, and wireless LAN configurations.
Modern detector platforms automatically log operational data—including detection events, alarm triggers, and configuration changes—with timestamps that support HACCP compliance and FDA 21 CFR Part 11 requirements.
Your data collection infrastructure should enable real-time reporting through web-based interfaces while storing up to 12 months of non-volatile records for regulatory audits and quality assurance documentation.
Network Integration and Protocols
- Ethernet networks linking detectors for real-time monitoring dashboards
- Wi-Fi wireless access enabling remote configuration from mobile devices
- Cellular communication providing secure off-site connectivity
- Wired LAN connections through IXC modules managing multiple THS units
- Loma eNet modules networking up to 40 detectors to centralized systems
You’ll maintain secure access through authentication mechanisms, firewalls, and VPNs while encrypted data transmission protects your operational intelligence.
SCADA compatibility and programmable SQL database connections deliver complete system integration.

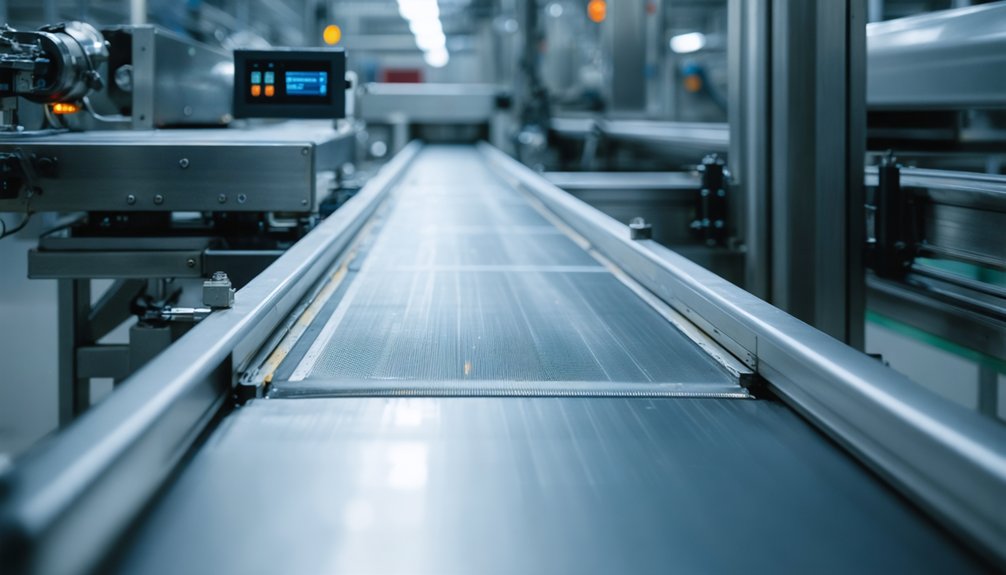

Data Logging and Reporting
Modern heavy duty metal detectors transform operational data into actionable intelligence through thorough logging systems that capture every detection event, rejection instance, and system operation.
You’ll access digital archiving capabilities supporting 10,000 scans per survey with unlimited hard disk storage, documenting timestamps, contamination types, and production line locations. Your system exports data in HTML, CSV, and PDF formats while generating performance reports for regulatory compliance.
Remote monitoring through Contact 4.0 provides real-time status updates via standard web browsers, eliminating additional software requirements.
You’ll connect multiple detectors through wired or wireless LAN for centralized analysis. USB and Ethernet integration enables automatic data transfer, while user authentication guarantees FDA 21 CFR Part 11 compliance with electronic signatures and data integrity protocols.
This infrastructure supports root cause analysis and continuous process optimization.
Maintenance Requirements and Operational Reliability
To maximize uptime and detection accuracy, your metal detector requires systematic maintenance protocols that align with industry regulations and operational demands. Schedule annual routine calibration 2-6 months before audits, allowing time for corrective repairs without production disruptions.
Personnel training ensures your team executes proper testing procedures, documents performance changes, and responds effectively to detection events.
Your preventive maintenance program should include:
- Aperture seal inspections preventing environmental contamination that triggers false rejections
- Belt degradation monitoring catching wear before catastrophic failures halt production
- System health checks validating detection performance across all metal contaminant types
- Moisture protection protocols including gasket repairs and sanitation coverage procedures
- Performance verification testing after every maintenance intervention using certified test samples
This disciplined approach reduces unplanned downtime, extends equipment lifespan, and maintains consistent detection capabilities without compromise.
Frequently Asked Questions
What Is the Typical Lifespan of an Industrial Metal Detector System?
You’ll get 10-15 years from quality industrial metal detector systems with proper maintenance. Warranty coverage typically spans 1-5 years, while detection sensitivity remains stable through regular calibration, cleaning, and controlled operating conditions within specified temperature ranges.
How Much Floor Space Is Required for Metal Detector Installation?
Floor space requirements depend on your aperture size and conveyor integration. You’ll need metal-free zones of 1.5-2× aperture height, but multi-lane systems cut installation requirements by 50%, optimizing space while meeting your operational freedom and efficiency goals.
Can Existing Conveyor Systems Be Retrofitted With Metal Detection Equipment?
Yes, you can retrofit existing conveyors with metal detectors using flat-pack or modular designs. You’ll maintain your conveyor speed while achieving ideal detection sensitivity through proper aperture sizing and metal-free zones around the detector head.
What Are the Total Ownership Costs Including Maintenance and Calibration?
You’ll spend 10-15% annually on maintenance plus calibration costs. A bakery investing $20,000 upfront faces $2,000-$3,000 yearly expenses. Cost-effective upgrades extend lifespan, while proper maintenance preserves resale value, giving you flexibility to adapt equipment as needs evolve.
How Long Does Staff Training Take for Metal Detector Operation?
Staff training duration ranges from 1-hour self-study courses to multi-day extensive programs, depending on your operational proficiency requirements. You’ll find basic detector operation takes 1-2 hours, while advanced maintenance training extends to full-day sessions at dedicated facilities.
