Reading your metal detector like a pro means learning to interpret tones, VDI numbers, and signal strength together rather than relying on any single indicator. High tones with VDI readings between 70–90 signal coins and jewelry, while low tones below VDI 20 indicate iron trash. Strong signals mean shallow or large targets; weak signals suggest depth or small size. Master these combined signals and you’ll dig smarter — and everything covered below will sharpen that skill further.
Key Takeaways
- High tones with VDI readings between 70–90 typically indicate valuable targets like coins and jewelry, while low tones signal iron trash.
- Use the X-pattern sweep technique, rotating the coil 90 degrees, to accurately pinpoint and confirm target locations before digging.
- Start sensitivity at 75–80%, gradually increasing until false signals appear, then reduce one notch for optimal detection performance.
- Set VDI discrimination below 20 to filter ferrous junk, but avoid over-discriminating to prevent missing potentially valuable finds.
- Always combine tone, VDI number, and depth reading data together before deciding to dig for best accuracy.
The Four Signals Every Metal Detector Sends
Your metal detector communicates through four distinct signals: tone, VDI (Visual Display Indicator), depth reading, and signal strength. Each delivers critical data that sharpens your target identification before you dig.
Tone variations tell you what’s likely underground. High tones suggest coins or jewelry, while low tones warn of iron trash. VDI numbers narrow identification further, giving you a numerical value tied to specific metals.
High tones chase coins and jewelry. Low tones warn of iron trash. VDI numbers pin down exactly what’s buried.
Depth estimation lets you gauge how far down your target sits, saving you unnecessary effort. Signal strength reveals the object’s size and proximity through audio clarity — a loud, sharp response means you’re close.
Master all four signals together, and you’ll stop digging junk. You’ll dig with purpose, confidence, and the kind of precision that separates serious detectorists from casual ones.
Decode Your Metal Detector Tones Before You Dig
Tone is your detector’s first language, and learning to read it stops you from wasting time on junk targets. Master tone recognition before you pull a single plug from the ground. Low tones signal iron and ferrous trash — walk past them.
Mid-tones indicate aluminum, pull tabs, or bottle caps — usually not worth stopping for. High tones point to coins, silver, jewelry, or gold — dig those confidently.
Signal analysis sharpens your accuracy further. A loud, sharp tone means your target sits shallow. An inconsistent tone warns you of mixed metals or irregular shapes.
Always sweep from multiple angles to confirm the signal repeats cleanly. Combine tone data with your VDI reading before committing to a dig — that combination keeps your recovery rate high.
Read VDI Numbers Like a Pro
VDI numbers give you a second layer of confirmation that tone alone can’t provide. Most detectors display readings from 0 to 100, and understanding those ranges sharpens your VDI accuracy in the field.
Ferrous junk typically falls below 20, while aluminum pull tabs and bottle caps cluster between 30 and 60. Coins, silver, and jewelry generally register between 70 and 90.
Don’t treat every number as absolute truth. VDI variations occur because of depth, mineralization, and target orientation. Consistent VDI analysis means sweeping from multiple angles to confirm a stable reading.
VDI calibration differs across detector brands, so study your manual to understand your machine’s specific scale. Combining a repeatable number with a matching tone gives you the confidence to dig or move on.
Use Signal Strength to Judge Depth and Object Size
Signal strength acts as your real-time feedback system for estimating both target depth and object size before you ever break ground.
Mastering audio feedback sharpens your detection strategy and improves target identification accuracy markedly.
Mastering audio feedback sharpens your detection strategy and drives target identification accuracy to a higher level.
Use these signal variation cues for reliable size estimation and depth accuracy:
- Strong, loud signal — indicates a large or shallow target with high signal clarity
- Weak, faint signal — suggests a small or deeply buried object requiring sensitivity adjustment
- Repeatable signal from multiple sweep angles — confirms a solid, consistent target
- Signal that grows louder as your coil approaches — enables precise size comparison and depth accuracy
Combining these audio feedback patterns with VDI readings tightens your overall detection strategy substantially.
Master the X-Pattern to Pinpoint Metal Detector Targets
Once you’ve detected a signal, sweep your coil in an X-pattern by making one pass, then crossing it perpendicularly to isolate the target’s exact position.
Rotate your coil 90 degrees over the strongest response point to confirm the target is centered beneath you, eliminating false reads from irregular shapes or mineralized ground.
Mark the spot mentally or physically at peak audio response before you dig, ensuring you’re not chasing a ghost signal or misidentifying the target’s location.
Understanding The X-Pattern Sweep
The X-pattern sweep is your most reliable method for pinpointing a buried target’s exact location. Sweep your coil in one direction, then rotate 90 degrees and sweep again. Where both passes produce the strongest audio feedback, that’s your target’s center. It’s a straightforward technique that sharpens target identification and boosts signal clarity.
Before sweeping, check your detector settings and adjust ground balance to eliminate false readings from mineralized soil.
- Sweep slowly for accurate audio feedback on each pass
- Mark your peak signal mentally before rotating
- Use X pattern benefits to confirm solid, repeatable targets
- Apply consistent practice strategies to master sweep techniques
Once you’ve crossed both axes, you’ll know exactly where to dig — no guesswork, no wasted effort.
Confirming Targets With Rotation
Rotating your coil 90 degrees after your initial sweep is what separates a confirmed target from a false signal. This rotation method eliminates directional interference and gives you a second data point from a perpendicular angle.
If the signal repeats consistently, you’ve completed successful target verification and identified a solid object worth digging.
Here’s how to execute it correctly:
- Sweep your standard X-pattern and mark the peak response point
- Rotate your coil exactly 90 degrees
- Re-sweep across the same marked spot
- Compare tone, VDI, and signal strength from both directions
If both passes produce matching readings, dig with confidence. If the signal shifts or disappears, you’re likely dealing with trash, mineralized ground, or an irregular shape. Move on.
Marking Peak Audio Response
Here’s how to mark effectively:
- Pause at peak signal and note the coil’s center position directly above the target.
- Use your boot tip or a small flag to mark the spot immediately.
- Confirm audio clarity by sweeping again in the perpendicular direction.
- Trust the strongest response, not the first response—precision beats speed every time.
You’ll waste fewer digs and recover more targets by committing to this disciplined, systematic approach every single time.

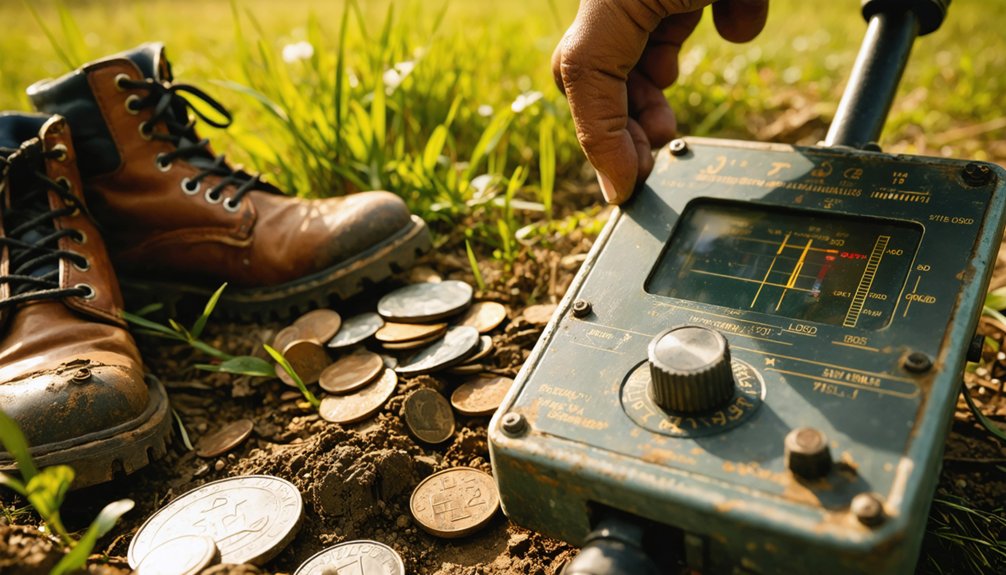

Adjust These Settings to Stop False Signals
Ground minerals create phantom signals that waste your time and drain your focus, so you’ll want to engage your detector’s ground balance feature to cancel out mineralization interference.
Fine-tune your sensitivity level carefully—pushing it too high amplifies deep targets but also triggers false alerts from electrical interference and soil composition.
Set your discrimination control to filter out low-VDI trash targets like nails and pull tabs, letting your detector respond only to the high-value signals worth digging.
Reduce Ground Mineral Interference
When minerals in the soil trigger false signals, your detector’s ground balance setting is the first adjustment you’ll want to make. Proper detector calibration against soil composition eliminates noise and restores signal clarity.
Apply these interference reduction techniques:
- Auto ground balance your detector over mineralized soil before sweeping to sync mineral settings instantly.
- Manual ground balance lets you fine-tune detection techniques for heavily mineralized ground like red clay or black sand.
- Lower sensitivity slightly when audio adjustments alone don’t eliminate false chatter from high-mineral zones.
- Pump the coil vertically several times over bare ground to help your detector read and neutralize the soil’s mineral content accurately.
Mastering these adjustments puts you in control, keeping your detector locked onto real targets while ignoring everything the ground throws at it.
Fine-Tune Sensitivity Levels
Adjust These Settings to Stop False Signals
Sensitivity controls how aggressively your detector responds to buried targets, and cranking it too high invites false signals from electrical interference, mineralized soil, or coil instability.
You’ll lose accuracy fast without proper sensitivity adjustments. Start at 75–80% sensitivity, then increase gradually until false signals appear. Drop back one notch—that’s your field’s ideal settings threshold.
Mineralized ground demands lower sensitivity; stable, clean soil tolerates higher levels.
Watch your VDI readings for erratic number jumping, which signals sensitivity is too aggressive. Inconsistent tones confirm the same problem.
Reduce sensitivity until targets read consistently across multiple sweeps. Use headphones to detect subtle audio changes that reveal when sensitivity drifts beyond productive ranges.
Control your settings, control your results.
Set Discrimination For Trash
Adjust These Settings to Stop False Signals
Discrimination settings give you 3 core controls—tone, VDI threshold, and notch filtering—that block unwanted targets before your coil ever alerts you to dig.
Configure these correctly, and you’ll skip junk targets without sacrificing valuable finds.
- Set your VDI threshold below 20 to automatically reject ferrous metals and iron debris.
- Activate notch filtering to eliminate mid-range junk targets like pull tabs and bottle caps.
- Monitor tone response — low tones signal trash, so trust your discrimination settings and walk past them.
- Avoid over-discriminating, since extreme filtering masks deep coins or irregular jewelry sitting near junk targets.
Calibrate discrimination incrementally, test each adjustment in your practice garden, and verify repeatable signals before committing to any dig.

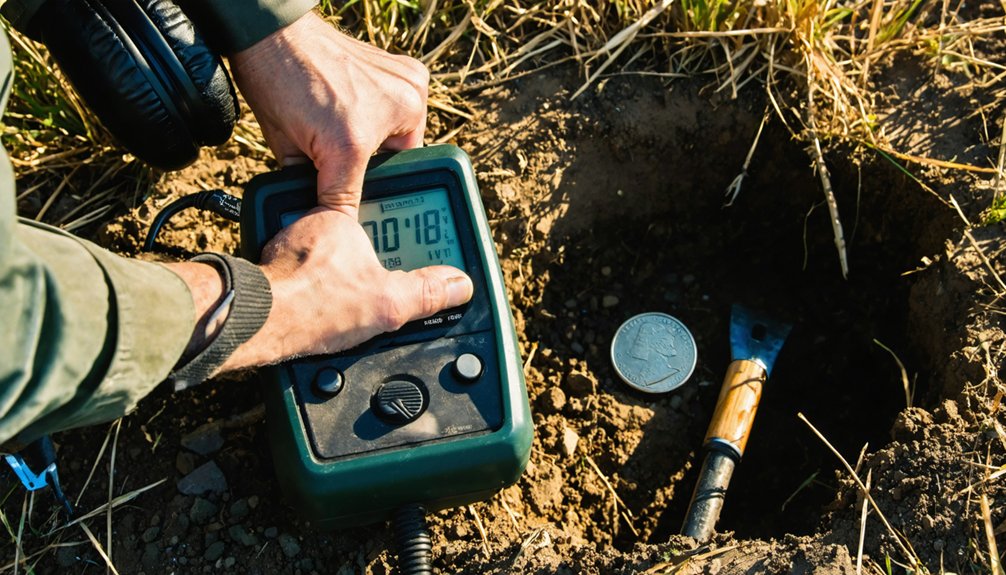

Put Tones, VDI, and Depth Together for Smarter Digs
Combining tones, VDI numbers, and depth readings transforms guesswork into a calculated digging decision. When your detector produces a high tone, confirms a 75–85 VDI reading, and estimates a shallow depth, you’ve got strong target identification pointing toward a coin or jewelry piece. Trust that combination.
Audio clarity matters greatly here. A repeatable, consistent tone across multiple sweep angles reinforces what your VDI displays. If the numbers jump erratically while the tone wavers, mixed metals or junk are likely present — skip it.
Cross-reference all three data points before committing your digger. High tone plus low VDI means something’s off. Let the full signal picture guide every decision, keeping productive digs high and wasted effort low.
Build a Metal Detecting Test Garden to Practice at Home
Before you head into the field, build a test garden in your backyard to calibrate your instincts and your detector. Controlled object placement across depth variations lets you master audio feedback and signal clarity without digging blind.
Use your test garden to sharpen detection skills across different soil conditions and material types:
- Bury target variety — coins, pull tabs, iron nails, and jewelry at 2, 4, 6, and 8 inches
- Map each object’s location so you can verify accuracy after each sweep
- Adjust sensitivity settings to compare signal response across depth variations
- Rotate practice techniques by sweeping multiple angles and testing discrimination levels
Consistent repetition here builds the muscle memory and material types recognition that fieldwork demands.
Frequently Asked Questions
Can Metal Detectors Read Signals Accurately Through Concrete or Pavement?
You’ll find concrete thickness and signal frequency directly impact detection accuracy. Thicker slabs weaken your readings, while higher frequencies penetrate better. Adjust your sensitivity settings upward to compensate and confirm targets using repeatable multi-angle sweeps.
How Does Wet Soil or Saltwater Affect Metal Detector Readings?
Just as you’re hunting near the shore, wet soil effects and saltwater interference boost conductivity, triggering false signals. You’ll need to lower sensitivity and adjust ground balance to filter misleading reads accurately.
Do Metal Detector Readings Change Based on Target Orientation Underground?
Yes, target orientation underground changes your readings considerably. A coin lying flat gives stronger signals than one standing vertically. You’ll notice orientation effects alter target depth accuracy, so adjust detector sensitivity and consider soil composition for reliable identification.
Can Two Nearby Metal Targets Confuse or Combine Detector Readings?
Yes, two nearby targets can confuse your detector through signal interference, blending VDI readings and distorting tones. You’ll need target separation techniques, like sweeping multiple angles, to distinguish individual objects and avoid misidentifying what’s actually underground.
How Do Temperature Changes Affect Metal Detector Signal Accuracy Outdoors?
Temperature fluctuations affect your detector’s ground balance and cause signal interference. You’ll notice false readings as soil minerals shift with heat or cold. Adjust your sensitivity settings and recalibrate frequently to maintain accurate target identification outdoors.
