You’ll find high-sensitivity metal detectors can identify ferrous needles as small as 0.5-0.8mm and non-ferrous metals down to 1.8mm through advanced calibration systems. Modern units feature programmable sensitivity levels exceeding 500 increments, independent zone adjustment across 33-36 detection areas, and adaptive signal processing algorithms including Kalman filtering and Multi Period Sensing technology. They operate reliably across temperature ranges from -37°C to +70°C with IP64/IP68 environmental protection ratings. The specifications below detail how these capabilities translate into practical deployment scenarios.
Key Takeaways
- High-sensitivity detectors identify ferrous needles as small as 0.5-0.8mm and non-ferrous metals at 1.8mm minimum size.
- Modern systems offer 100-1000 programmable sensitivity levels with independent zone adjustment for precise detection customization.
- Automatic calibration compensates for environmental factors like temperature and drift, maintaining optimal sensitivity without manual recalibration.
- Advanced signal processing uses adaptive filters and discrimination algorithms to reduce false alarms while detecting tiny metal objects.
- Lightweight portable designs with rechargeable batteries enable extended field operation for locating small embedded metal fragments.
Detection Capabilities for Pin-Sized Metal Objects and Minimal Masses
When evaluating metal detectors for critical security and quality control applications, detection limits for pin-sized objects serve as the primary performance benchmark. High-performance units like the ST-30C detect ferrous needles at 0.5-0.8mm through optimized sensitivity calibration, while standard configurations identify 1.5mm ferrous metals.
High-performance metal detectors achieve ferrous needle detection at 0.5-0.8mm, establishing the critical benchmark for security and quality control sensitivity calibration.
Object size detection varies by material composition—you’ll find non-ferrous metals require 1.8mm minimum detection, and 316 stainless steel demands 2.0mm spheres.
The ER3000 excels at locating tiny fragments embedded in tissue or fabric, surpassing conventional wands.
Multi-zone walkthrough systems like the SMD 601 Plus identify minimal metal masses on or within the body. Advanced models feature adjustable sensitivity per zone, enabling operators to customize detection thresholds based on specific security requirements and environmental conditions.
Sensitivity measures correlate directly with aperture dimensions—smaller openings yield superior detection of microscopic threats without restricting your operational requirements. The ST-30C’s 50mm detection width enables precise scanning of narrow inspection zones, making it particularly effective for quality control in apparel manufacturing and pharmaceutical processing.
Sensitivity Adjustment and Programmable Customization Options
Modern high-sensitivity metal detectors provide multiple programmable sensitivity levels that you’ll adjust through digital interfaces or mechanical controls to match specific detection requirements.
You can configure independent zone adjustment capability to set different sensitivity thresholds across detection areas, optimizing performance for varied product sizes and contamination risks.
Automatic calibration systems continuously monitor environmental conditions and detector performance, enabling real-time sensitivity optimization without manual intervention.
Proper adjustment ensures detection distance meets requirements while preventing false alarms that occur when sensitivity settings are excessive for the application environment.
Starting with factory preset levels and gradually increasing allows you to find the optimal balance between detection capability and operational stability for small object identification.
Multiple Programmable Sensitivity Levels
Since detection requirements vary across applications, manufacturers equip high sensitivity metal detectors with multiple programmable sensitivity levels that allow operators to optimize performance for specific scenarios. You’ll find devices offering three predefined levels—like the Metor 28e calibrated for handguns, razor blades, or small-caliber bullets—while advanced systems provide extensive sensitivity range options exceeding 500 adjustable increments.
The Zorpro 33 delivers 100 general settings plus 255 per-zone configurations, enabling precise zone customization for targeted detection.
These programmable levels accommodate ferrous, non-ferrous, and stainless steel contaminants with specific calibration thresholds. You can select sensitivity through touchscreen interfaces or dedicated buttons, adjusting detection parameters without external tools. Modern detectors incorporate microcontroller technology that enables digital operation without requiring manual calibration procedures.
This programmability gives you control over false alarm rates while maintaining detection capability for your designated threat objects, whether screening for weapons or identifying product contamination. Proper sensitivity adjustment balances detection depth with signal stability to minimize unwanted interference during operation.
Independent Zone Adjustment Capability
Independent zone adjustment capability transforms metal detectors from uniform screening devices into precision instruments that compensate for physical variables and operational requirements. You’ll configure 33-36 zones with individually adjustable sensitivity levels, enabling zone calibration that addresses ground proximity signal loss requiring 40-60% higher sensitivity in lower detection areas.
Modern systems provide 255-1000 programmable levels per zone, allowing sensitivity fine tuning tailored to airports, stadiums, or high-security facilities. You’ll independently adjust each zone’s response characteristics—upper zones maintain normal sensitivity while lower zones compensate for environmental factors.
This granular control minimizes false alarms through precise localization, reducing manual searches and operational interruptions. The 7-inch LCD touchscreen provides real-time visualization of zone configurations and detection status for streamlined parameter adjustments. Advanced configurations incorporate automatic interactive sensitivity calibration that identifies optimal sensitivity levels for specific test objects, ensuring consistent detection performance across all zones. Zone-specific configurations support 60-person-per-3-minutes throughput while maintaining strict security standards, delivering operational efficiency without compromising detection accuracy.
Automatic Calibration Systems
Through continuous digital processing, automatic calibration systems eliminate manual balance adjustments by monitoring air and product signals in real-time to compensate for temperature variations, mechanical drift, and environmental changes.
You’ll reduce calibration intervals markedly while minimizing operator training requirements through intelligent automation that handles complexity behind the scenes. This continuous background operation maintains detector stability without interrupting your production workflow.
Modern systems provide flexible sensitivity adjustment options:
- Multi-Point Auto-Learn optimizes detection from a single product transit
- Programmable test ratios mix manual and automatic validation sequences
- Configurable timing shifts align with your production patterns and audit schedules
- Auto-QC digital simulation generates Fe, Non-Fe, and Stainless Steel test signals without physical samples
- FDA 21 CFR Part 11 compliance through automatic digital record generation
You’ll configure boundary auto-setup parameters, select correction frequencies, and program line stops during validation—all while maintaining centerline sensitivity across metal types. By eliminating physical test pieces, Auto-QC validation reduces product waste and labor costs while providing traceable digital records for compliance audits.
Operating Temperature Ranges and Environmental Tolerance Standards
High-sensitivity metal detectors must maintain accurate detection capabilities across diverse environmental conditions, with manufacturers specifying distinct operating temperature ranges that reflect their intended deployment scenarios.
Metal detector performance depends on precise temperature calibration, with manufacturers engineering units for specific environmental extremes and operational contexts.
You’ll find temperature resilience spanning from Garrett’s extreme -37°C to +70°C range down to Labtron’s moderate -20°C to +50°C specification, each calibrated for specific operational requirements.
Humidity adaptability reaches 98% in Adams units, while CEIA systems specify 0-95% non-condensing tolerance.
Environmental protection standards include IP64 and IP55 ratings per IEC 529, ensuring dust and water resistance.
Storage temperatures extend beyond operational limits—Adams models withstand -30°C to +80°C when inactive.
Industrial applications demand specialized housings: Rota-Sonde’s cast aluminum construction resists shocks, vibrations, and corrosive atmospheres, while galvanically isolated inputs enhance reliability in electrically harsh environments.
Advanced Detection Technology and Signal Processing Methods
- Least mean squares filters for adaptive soil signal subtraction
- Recursive least squares and Kalman filtering for real-time noise removal
- Gradient descent optimization for model-fitting accuracy
- Non-linear least squares with Levenberg-Marquardt algorithms
- Metaheuristic refinement using simulated annealing and differential evolution
Advanced implementations incorporate Multi Period Sensing (MPS) and Dual Voltage Technology (DVT) for discrimination between targets and mineralization, maximizing detection freedom across varied terrain conditions.
Alarm Indicators and Multi-Mode User Notification Systems
Once sophisticated signal processing algorithms have isolated and characterized target responses, operators require immediate, interpretable feedback to make field decisions.
High-sensitivity detectors employ multi-layered notification systems combining audio synchronization with visual Target ID displays. You’ll encounter high-pitched tones for non-ferrous metals (gold, silver, copper) and low-pitched signals for ferrous targets, while VDI scales spanning 0-99 quantify conductivity levels.
Notification customization enables discrimination mode selection, filtering unwanted conductivity ranges through button-controlled target ID frames.
Pinpoint modes overlay depth indicators—visual bars and numerical readouts—alongside mineralization data for precise localization.
Advanced models integrate all-metal and discrimination modes, allowing real-time switching between all-encompassing detection and selective filtering.
Multi-angle sweep analysis verifies complex signatures, ensuring you won’t miss valuable small objects while maintaining operational autonomy in challenging environments.

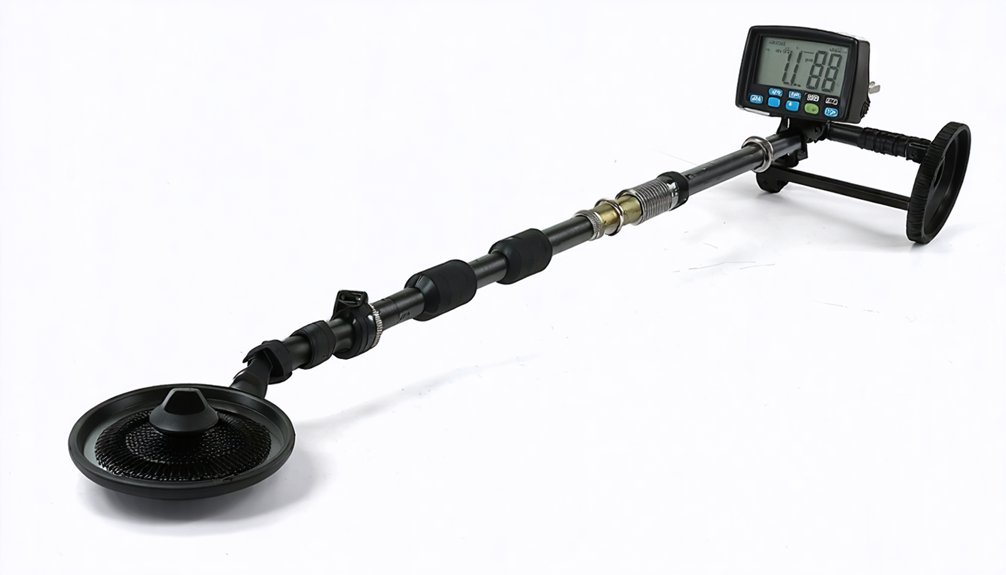

Physical Specifications and Portable Design Features
Modern handheld metal detectors balance detection capability with ergonomic constraints, spanning compact 200-gram units to industrial-grade instruments exceeding 2.7 kg. Material weight directly impacts operator fatigue during extended screening sessions, while shape ergonomics determine deployment flexibility.
Critical dimensional specifications include:
- Probe width ranges: 55mm compact bodies to 105mm detection heads, with specialized 8-inch aperture configurations
- Length variability: Fixed 360mm units versus telescoping designs extending from 387mm to 1290mm
- Construction materials: High-impact ABS, polished 304 stainless steel, polycarbonate composites for durability
- Transport efficiency: Folding mechanisms reducing storage to 35cm carry bags
- Grip design: Rubberized handles ensuring secure operation across environmental conditions
ISO-9001 compliant manufacturers prioritize both detection performance and operational freedom through thoughtful engineering compromises.
Weatherproofing and Durability for Field Deployment
Field deployment demands metal detectors engineered to withstand environmental extremes that would compromise standard electronic equipment. You’ll find IP65-rated units provide dust-tight and water-resistant protection against heavy rain and moisture ingress. IP68 models remain operational when fully submersible to 16 feet.
Weather resistance extends through operating temperatures from -20°C to 60°C, maintaining detection accuracy in extreme heat or cold without recalibration.
Material durability features include fireproof construction, corrosion-resistant components, and impact-resistant builds that meet military-grade reliability standards. You’re equipped for sustained field operation with 24-26 hour battery life, zero assembly requirements, and deployment times under 10 seconds.
The lightweight 21-pound design enables single-person transport across challenging terrain while processing 60 people per minute in outdoor environments.
Applications Across Security and Loss Prevention Sectors
Ruggedized construction and environmental resistance enable high-sensitivity metal detectors to perform across diverse operational contexts where security threats and asset protection converge.
Detection algorithms differentiate genuine threats from benign personal items, maintaining flow rates exceeding 50 feet/second at airports and venues.
Sensor calibration adapts to environmental conditions, ensuring NIJ 0601.02 compliance across facilities requiring single razor blade detection.
Critical deployment sectors include:
- Airport checkpoints: Multi-zone localization with 60 discrimination zones minimizes manual searches
- Public venues: Random alarm capability (0-100%) enhances unpredictable crowd screening
- Educational institutions: Adjustable sensitivity prevents weapons entry without operational disruptions
- Government facilities: Network-linked statistical analysis tracks screening efficiency
- Loss prevention: 200 sensitivity levels across 33 zones protect manufacturing and hospitality assets
Hand-held units provide secondary verification where permanent installations prove impractical.
Power Supply Options and Extended Field Operation Capabilities
You’ll find high-sensitivity metal detectors offer multiple power configurations to match operational requirements.
Standard alkaline batteries (2x ANSI type C, 1.5V) deliver 6 hours runtime at 20°C.
While Ni-MH rechargeable options (1.2V, 6000 mAh) extend operation to 8 hours under identical conditions.
Field maintenance demands understanding series versus parallel battery configurations—series doubles voltage output, parallel doubles amp-hour capacity for prolonged deployment cycles.
Battery Types and Longevity
- Alkaline: 1.5V output, disposable, high internal resistance limits performance
- NiMH: 2x NiCd capacity, 1600mAh models enable full-day operation, environmentally friendly
- Lithium-ion: Longest lasting, lightweight, minimal self-discharge, premium cost
- NiCd: 1000 charge cycles, memory effect reduces practical capacity
- Rechargeable alkalines: 500 cycles with diminishing capacity over time
Built-in lithium systems eliminate frequent battery purchases while maintaining detection capabilities.
Field Replacement and Maintenance
When deploying metal detectors beyond fixed installations, you’ll need field-compatible power solutions that match your detector’s electrical specifications. Verify your AC/DC adapter delivers sufficient wattage—minimum 500W stations prevent equipment failure during extended operations. The GER Titan 400’s 100-240V input and 5.0V 2.4A output exemplifies proper voltage matching for high-sensitivity units.
Power management extends operational freedom through multiple backup options. IP68-rated adapters withstand -46°C to +70°C environments while vehicle-powered 12/24Vdc cables enable mobile deployments. Lithium-based UPS systems eliminate downtime during power interruptions, while Ni-MH batteries recharge in three hours via cigarette lighter connections.
Maintenance routines focus on verification: check adapter ratings against detector requirements, inspect environmental seals, and validate backup power capacity. Setup completes in under 20 seconds, ensuring rapid field replacement without compromising detection standards.
Frequently Asked Questions
How Often Do Metal Detectors Require Calibration and Maintenance?
You’ll need calibration routines every three to six months for peak performance. Maintenance schedules should include monthly accuracy checks and daily inspections. High-traffic environments demand more frequent attention, letting you maintain detection reliability without compromising operational freedom.
What Is the Typical Battery Life During Continuous Operation?
You’ll get 48-360 hours of battery longevity during continuous operation, depending on your detector’s power consumption and battery type. Alkaline batteries deliver longest runtime, while rechargeable NiMH options provide 80-200 hours with low-power modes activated.
Can Metal Detectors Distinguish Between Different Types of Metals?
You’ll find metal detectors can’t precisely identify metal composition, but they’ll provide detection accuracy by sorting targets into conductivity ranges. This lets you filter iron trash from valuable finds, though you can’t distinguish exact alloys definitively.
Are There Health Risks From Prolonged Exposure to Detection Fields?
You’ll practically live forever around metal detectors! Electromagnetic exposure from detection fields causes zero health risks, even with prolonged use. Safety guidelines confirm non-ionizing radiation levels remain infinitely below harmful thresholds, ensuring you’re completely free from any biological concerns whatsoever.
What Training Is Required to Operate High Sensitivity Metal Detectors?
You’ll need initial operator training covering inspection procedures, sensitivity settings, and screening techniques to guarantee detection accuracy. While user certification isn’t federally mandated, you should achieve site performance objectives and demonstrate proficiency through testing protocols before operating independently.
