You’ll need to master your AT Max’s core controls: power button (1-second on, 5-second reset), sensitivity adjustment, and ground balance modes. Start by assembling the stem with spring clips, attaching the waterproof coil (good to 10 feet), and installing four AA batteries for 20-hour runtime. Learn auto ground balance for uniform terrain and manual mode for saltwater beaches, where you’ll pump the coil 1-8 inches above ground while holding SHIFT. Choose All-Metal mode for maximum depth, Zero mode for stable discrimination, or customize notch patterns for your specific hunting conditions—the techniques below will transform your detecting success.
Key Takeaways
- Assemble by connecting lower stem with spring clip, attaching search coil with cam locks, and wrapping cable with slight slack at connection.
- Install four AA batteries (alkaline, NiMH, or 1.5V lithium) with prongs inward; remove if storing over 30 days to prevent leakage.
- Use auto ground balance for uniform terrain; manual mode for saltwater beaches with pumping technique and frequent readjustments at low sensitivity.
- All-Metal mode maximizes depth; Coins mode balances depth and discrimination; customize notch patterns to reject specific trash conductivity ranges.
- Set sensitivity at 7-8 bars typically; increase to 9-10 in low-interference areas; adjust iron discrimination range based on site contamination level.
Understanding Your AT Max: Key Components and Controls
Before you can maximize the AT Max’s capabilities in the field, you’ll need to understand its control box layout and primary functions. Your display screen tracks battery levels and target ID values from 0 to 99, while mode indicators show your current detection setting.
The power button requires a one-second hold to activate—press it for five seconds to factory reset.
Primary controls include sensitivity adjustment for detection depth, pinpoint mode for precise target location, and ground balance with automatic or manual options.
The frequency adjustment offers four shifts to combat electrical interference.
Audio calibration is accessible through the SHIFT button combined with volume controls.
Secondary functions manage discrimination patterns and ground tracking.
The detector features a textured grip for enhanced durability and control during extended hunting sessions.
The AT Max includes a built-in Z Link wireless transmitter that pairs with compatible Garrett MS3 headphones for cable-free detection.
Proper coil maintenance starts with secure hand-tightened connections and cable wrapping for field durability.
Initial Setup and Configuration
Your AT Max arrives with four AA batteries pre-installed, requiring only stem assembly before operation.
Connect the lower stem to the control housing by engaging the spring clip in the first stem opening, ensuring the battery compartment remains secure during field use.
For rechargeable options, you’ll need to acquire a USB charging cable separately, as the standard configuration relies on replaceable alkaline batteries.
After connecting the stem, attach the search coil by loosening the cam locks, extending the stem to your desired length, then inserting and tightening the mounting washers and wing nut.
The search coil is waterproof to depths of 10 feet (3 meters), allowing detection in both freshwater and saltwater environments.
Assembling Your AT Max
Getting your AT Max detector field-ready requires methodical assembly that establishes the foundation for consistent performance. Begin by loosening the lower camlock to extend your stem, then secure the searchcoil using mounting washers and the provided bolt—hand-tighten the wing nut firmly without overdoing it.
For the upper section, remove the camlock collar, slide it over your S-stem, and depress the spring clips during insertion. Engage that first opening to maintain battery access.
Wrap your coil cable snugly around the stem, eliminating loose loops that’ll snag in brush. Leave slight slack at the coil connection point to prevent cable strain during sweeping motion. When connecting the 4-pin connector, align those pins carefully and press until the O-ring seats completely. Before tightening the connection, ensure the o-ring is seated properly to establish a secure and weatherproof seal.
Proper coil maintenance starts here, and you’ll want searchcoil calibration dialed in before heading out. Thread that collar hand-tight—you’re ready to hunt.
Battery Installation and Power
Once assembly’s complete, power management becomes your next critical checkpoint—and the AT Max’s battery system delivers field-proven reliability when you understand its requirements.
You’ll need four AA batteries: alkaline or nickel metal hydride rechargeables work best, while 1.5-volt lithium batteries are compatible. Never use 3.7-volt lithium batteries—they’ll damage your detector.
Battery maintenance starts with proper installation: rotate the battery cover counterclockwise one-quarter turn, then slide out the holder. Insert batteries with prongs facing inward, flat sides against springs, aligning the metal contact on the left. Before removing old batteries, note the orientation to ensure correct installation of replacements.
You’ll get up to 20 hours of operation per charge.
The power source indicator displays immediately when you press the ON/OFF button. Monitor the battery indicator regularly during use and replace or recharge batteries when it shows one bar.
Remove batteries if storing beyond 30 days.
Ground Balance Techniques for Different Terrains
The AT Max offers both automatic and manual ground balance modes, each serving distinct purposes across varying terrain conditions.
You’ll find auto balance excels in uniform ground like dry sand or open fields.
Manual adjustments become critical when hunting saltwater beaches or highly mineralized soil where subtle tweaks optimize target response.
Understanding when to balance positive for small targets versus negative for saltwater interference separates casual beach hunters from those consistently recovering deep silver and gold at wet sand sites.
For wet sand conditions, manual ground balance should be set very low at around 3-4 bars with about half power to achieve optimal target detection.
Regularly readjust ground balance as you move between different beach zones since mineralization levels shift from dry to wet sand transitions.
Automatic Vs Manual Balance
Ground balance on the AT Max operates through two distinct methods that serve different detection scenarios. Automatic mode spreads the balance window to handle severe mineralization shifts, similar to how frequency tuning adapts to electromagnetic interference.
You’ll press shift while pumping the coil, letting Garrett’s proprietary algorithm smooth audio responses and minimize ground noise. Manual mode gives you precise control—adjust positive for enhanced small target sensitivity or negative to eliminate hot rocks.
When working with varied terrain, you’ll want coil compatibility with your balance approach: auto establishes your baseline, then manual fine-tuning optimizes performance. In wet black sand, run manual way down with reduced sensitivity.
For deep silver in mineralized soil, balance slightly negative after auto-calibration. Rebalance frequently when changing between dry and saturated ground conditions.
Saltwater Beach Ground Balancing
Why does saltwater beach detecting demand the most aggressive ground balance adjustments in your AT Max arsenal?
Saltwater’s conductive properties create severe mineralization that’ll destabilize your detector without proper technique. You’ll need to re-ground balance at three critical shifts: moving from dry sand to wet saturated areas, entering the water, and when switching between hunting zones.
Execute the pumping technique by holding shift while moving your coil 1-8 inches above ground in metal-free spots. Set sensitivity to half power (3-4 bars) and manually lower ground balance 2-3 points after auto-balancing.
The 175-point resolution handles saltwater effects by spreading the balance range.
Remember: rinse your detector thoroughly after each session—corrosion prevention protects your investment and maintains peak performance in challenging beach environments.
Highly Mineralized Soil Adjustment
When mineralized soil threatens to mask valuable targets beneath a cacophony of false signals, mastering your AT Max’s 175-point ground balance resolution becomes non-negotiable.
Advanced Mineralization Strategies:
- Positive bias technique – Push your ground balance number slightly higher than neutral to amplify small nonferrous targets. This aggressive approach enhances sensitivity to coins and jewelry hiding in ferrous-heavy ground response.
- Negative offset method – Dial back your setting to eliminate hot rocks and terracotta interference. When soil mineralization creates persistent chatter, this subtraction quiets your detector without sacrificing depth.
- Dynamic rebalancing protocol – Ground conditions shift as moisture levels change. Rebalance frequently when moving through varying terrain or after rainfall affects soil conductivity.
- Sideways sweep calibration – Hold SHIFT while swinging horizontally across multiple ground patches to maximize Window spread, forcing your detector to handle extreme mineralization variations automatically.

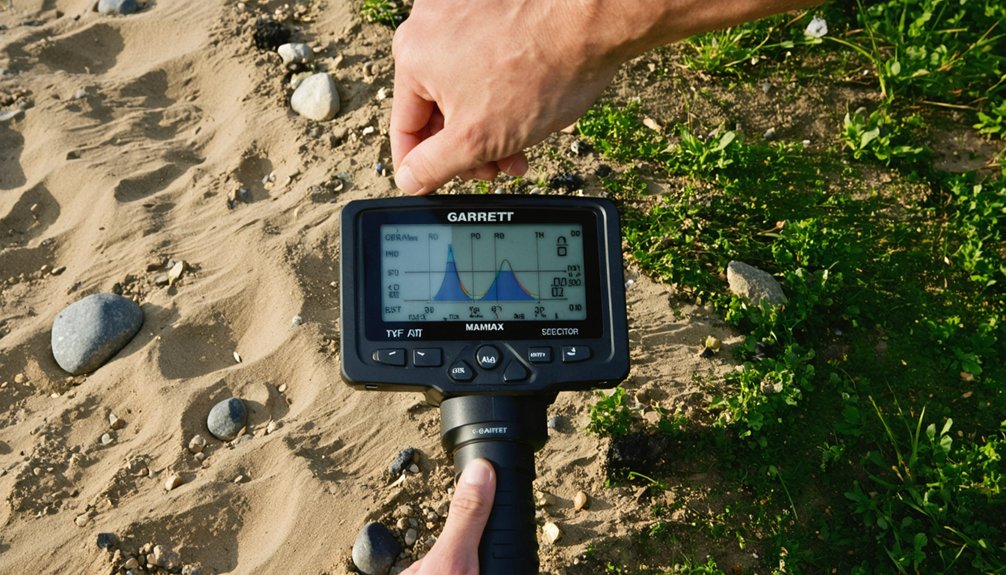

Search Modes Explained: When and How to Use Each
Understanding which search mode to deploy transforms the AT Max from a capable detector into a precision instrument matched to your hunting environment.
True All-Metal Mode delivers maximum depth through continuous signal processing—essential for virgin ground where every target matters. You’ll hear subtle variations that discrimination modes filter out, though coil motion remains mandatory.
Zero Mode provides all-metal detection with stable, quiet operation by activating every discrimination pixel while maintaining depth capabilities—perfect for relic hunting without elimination constraints.
Custom Mode empowers you to program notch patterns that persist through power cycles, adapting metal detection parameters to your specific conditions.
Coins Mode offers factory-optimized discrimination targeting coin conductivities—balancing depth against trash rejection in populated areas.
Deploy All-Metal for depth, discrimination modes for contaminated sites. Your freedom lies in matching mode characteristics to ground reality.
Mastering Discrimination and Target Identification
How does a metal detector distinguish treasure from trash when both produce signals? The AT Max uses conductivity-based discrimination modes that analyze how electrical current flows through detected metals.
You’ll master this system by understanding these principles:
- Target ID numbers display 0-99, with ferrous metals registering lower and valuable targets like coins and silver reading higher on the scale.
- All Metal Mode delivers maximum depth but accepts everything—you’ll hear continuous audio for all targets, requiring post-detection analysis with Iron Audio.
- Discrimination patterns use 12 adjustable notches to reject specific conductivity ranges, eliminating pull tabs and bottle caps while retaining desired targets.
- Zero discrimination maintains peak sensitivity; increase discrimination gradually based on site conditions and trash density.

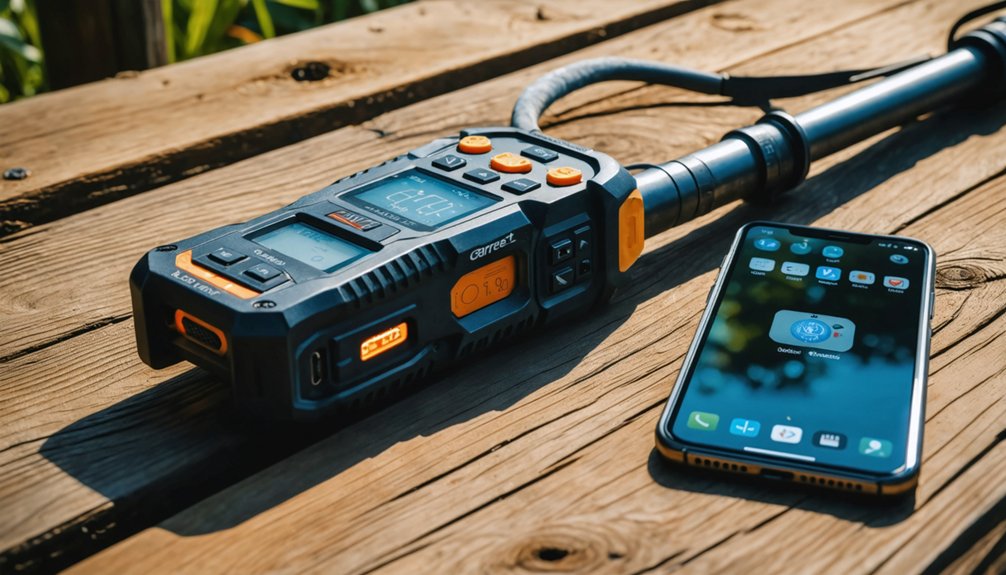

Wireless Connectivity and Display Settings
Monitor connection status through LCD indicators: steady means paired, flashing indicates searching, and absent shows no connection.
Check the LCD icon to verify pairing status—solid light confirms connection, blinking means searching, no light indicates disconnection.
To switch headphones, press both buttons again while the icon’s steady.
Display customization includes toggling the backlight with its dedicated button.
Hold the power button five seconds to restore factory settings, returning you to Coins mode.
The detector supports shallow wading but won’t survive full submersion.
Advanced Hunting Strategies and Depth Optimization
When pursuing maximum detection depth, you’ll achieve best performance by setting sensitivity between 7-8 for most hunting conditions, then pushing it to 9-10 only in wide open fields where trash and electromagnetic interference remain minimal.
Depth Optimization Protocol:
- Coil Selection – Deploy the larger Reaper coil in open areas for enhanced depth penetration, while switching to the Viper or 5×8 coil when target separation becomes critical in trashy environments.
- Zero Mode Mastery – This setting provides superior audio modulation for deep targets, letting you hear faint signals that discrimination modes reject.
- Ground Balance Technique – Sweep the coil back and forth during tone calibration in mineralized soil, ensuring accurate target identification at maximum depths.
- Iron Discrimination Range – Adjust from 30-35 in moderate sites up to 44 in heavy junk areas, maintaining signal clarity without sacrificing valuable targets.
Frequently Asked Questions
What Is the Warranty Coverage for the Garrett at Max Detector?
Your Garrett AT Max detector protection includes a three-year warranty coverage from purchase date, covering factory defects in parts and labor. You’ll find it excludes batteries, abuse, unauthorized repairs, and normal wear from your adventurous detecting expeditions.
Can I Use Different Searchcoils With the at Max Metal Detector?
Yes, you’ve got excellent coil compatibility with the AT Max. All Garrett AT series searchcoils work interchangeably, plus you can use model-specific aftermarket options like Detech Ultimate and NEL coils for enhanced searchcoil options and performance.
How Long Do the AA Batteries Typically Last During Detecting Sessions?
You’ll get 7-8 hours of detection session duration per AA set in real-world conditions, despite Garrett’s 20-hour claim. Wireless Z-Lynk drains faster than advertised, so pack rechargeable backups for freedom.
Is the at Max Suitable for Saltwater Beach Metal Detecting?
Yes, you’ll find the AT Max suitable for saltwater beach detecting with proper settings. It’s waterproof to 10 feet, resists saltwater corrosion, and handles conductive soils well. However, you’ll need to reduce beach sensitivity to minimize chatter in challenging conditions.
What Headphones Are Compatible With the Z-Lynk Wireless System?
🎧 You’ll find headphone compatibility includes MS-3 and CS-3 models for wireless audio options. They pair directly with AT Max, Vortex VX5/VX7, and other detectors using standalone Z-Lynk transmitters, giving you unrestricted movement while detecting.
