You’ll master the Nokta Legend by understanding its four detection modes (Park, Field, Beach, Gold Field) and leveraging 16 custom profiles to preserve your preferred sensitivity, recovery speed, and discrimination settings. Multi-frequency mode provides broader coverage but introduces more EMI noise compared to single-frequency operation at 15 kHz, which excels in clay soil and on specific targets. Configure audio through threshold levels (0-30), tone pitch customization, and recovery speed (1-10 scale) while using iron filter settings (1-8) to eliminate false signals. The sections ahead break down environment-specific optimizations and advanced calibration techniques.
Key Takeaways
- Four detection modes (Park, Field, Beach, Gold Field) with 16 custom profiles preserve sensitivity, recovery speed, and discrimination patterns.
- Multi-frequency offers broad coverage but single frequency (15 kHz) provides better stability, less EMI noise, and superior clay soil performance.
- Discrimination patterns include All Metal, Ferrous Off, Ground Effect Off, and Custom; Iron Filter adjustable 1-8 enhances accuracy.
- Recovery Speed (1-10 scale) improves target separation in trashy areas; ground balance calibration enhances stability in mineralized soil.
- Optimize settings per environment: Park Multi 1 for urban parks, Multi 3 for fields, Multi Wet for beaches.
Understanding the Four Detection Modes and Custom Profiles
The Nokta Legend organizes its detection capabilities into four distinct modes—Park, Field, Beach, and Gold Field—each engineered with specific target environments and recovery parameters.
The Nokta Legend delivers four specialized detection modes—Park, Field, Beach, and Gold Field—each optimized for distinct environments and recovery needs.
Park mode excels in trashy sites with iron and foil, while Field mode operates at recovery speed 5 with 2 tones.
Beach mode differentiates between Multi Wet (W) and Multi Dry (D) conditions, and Gold Field targets small low conductive items by excluding lower single frequencies.
You’ll gain significant versatility through 16 custom profiles—four per detection mode.
These profiles preserve your preferred sensitivity, recovery speed, and discrimination patterns for specific locations or target types.
Access them instantly with a single button press, eliminating repetitive adjustments.
The detector features 10 levels of recovery speed that allow you to fine-tune target identification based on site conditions and target density.
Sensitivity settings range from 1 to 30 to optimize performance for varying ground conditions and electromagnetic interference.
This customization empowers you to adapt rapidly between sites while maintaining consistent, optimized performance tailored to your hunting strategy.
Multi-Frequency Vs Single Frequency Operation
The Nokta Legend’s SMF mode transmits multiple frequencies simultaneously, giving you broad coverage across various metals and depths—particularly valuable in challenging environments like wet sand and saltwater.
However, you’ll sacrifice tone stability and introduce more EMI noise compared to single frequency operation.
When you need crisp, consistent audio on specific targets like gold rings or coins, switching to a dedicated single frequency—typically 15 kHz—delivers superior performance and cleaner operation in most soil conditions. You’ll notice that odd-shaped gold rings produce significantly jumpier tones in multi-frequency mode, making pinpointing more difficult.
Single frequency settings also prove more reliable when hunting in dense clay soil, where multifrequency can show inconsistent performance with target rejection and identification.
SMF Coverage and Benefits
The SMF advantages extend beyond target range.
You’ll experience superior depth and discrimination in trashy sites, stable operation over salt water through dedicated beach algorithms, and reduced ground noise via intelligent frequency shifting.
Multi-frequency modes M1, M2, and M3 optimize performance for specific conditions—mineralized ground, neutral soil, or wet conductive environments—delivering precision single frequencies can’t match.
The Legend’s SMF technology operates across six frequency bands ranging from 2kHz to 40kHz, providing comprehensive coverage for targets from small gold nuggets to deep relics.
For targeted detection in specific scenarios, the Legend also offers individual frequency options at 4, 10, 15, 20, and 40 kHz alongside its multi-frequency capabilities.
Single Frequency Target Selection
- 4kHz – Optimized for large, high-conductive targets like silver coins, delivering stable signals in hammered parks.
- 15kHz and 20kHz – Balanced performance across medium conductivity ranges, excellent for general hunting.
- 40kHz – Maximum sensitivity to low-conductive targets including small gold jewelry, foil, and nuggets.
You’ll achieve cleaner threshold operation and pull more depth outside iron-infested areas.
In Goldfield mode, you’re restricted to 20kHz and 40kHz alongside multi.
Switch frequencies strategically in worked-out sites—you’ll recover targets others missed. Single frequency provides deeper detection capabilities compared to multi-frequency operation in heavily mineralized ground. Single frequencies may prove less noisy in areas with high electromagnetic interference.
Discrimination and Target ID Systems
When hunting targets with the Nokta Legend, you’ll rely on four distinct discrimination patterns to filter unwanted metals: All Metal, Ferrous Off, Ground Effect Off, and Custom (Notch Discrimination). Each mode defaults to specific patterns—Park, Field, and Beach use Ferrous Off (F), while Gold Field employs Ground Off (G).
Your discrimination techniques won’t transfer between modes; settings remain isolated.
All Metal accepts Target IDs 1-60, providing thorough target identification without rejection. Ferrous Off eliminates iron by rejecting IDs up to 11 in Park 1 and Field modes, though this compromises some gold detection.
You’ll customize discrimination by holding the horseshoe button to notch specific ID segments—essential for rejecting hot rocks (IDs 10-12) in mineralized fields. The Iron Filter, adjustable from 1-8 with default at 8, maximizes ferrous tone accuracy for cleaner target identification. The Iron Rejection feature enhances discrimination by using varying sound frequencies to distinguish ferrous targets, with an adjustable “Ir” setting between 1-5 that increases ferrous tone probability for deep non-ferrous targets. The visual target indicator on the backlit LCD screen displays a graphical representation of target conductivity alongside the numeric Target ID for improved identification accuracy.
Audio Settings and Tone Customization
You’ll configure the Legend’s audio output through three interconnected controls that shape target response and detection depth.
Threshold level pairs with frequency settings to establish your baseline audio environment, while tone pitch customization lets you assign distinct auditory signatures across up to six tone breaks.
Audio Gain functions as a secondary volume multiplier that amplifies threshold response—particularly critical in Gold mode where it enhances deep target audibility without overloading surface signals.
Threshold Level and Frequency
The Nokta Legend‘s threshold setting spans a range from 0 to 30, with each mode configured to different defaults based on its intended hunting environment.
Park and Beach modes default to 0 for silent operation, while Gold mode starts at 12. Recent firmware updates set threshold frequency to 10 in Park, Field, and Beach modes.
Threshold benefits include enhanced target detection:
- Enables high-tone targets to “pop and scream” above the background hum
- Reveals weak signals from smaller, deeper targets that silent operation would miss
- Creates audible contrast that makes target responses stand out during sweeping
Threshold adjustments require balancing detection capability against audio comfort.
Settings too low risk missing targets, while settings exceeding 30 generate excessive noise that obscures target responses, making them indistinguishable from background hum.
Tone Pitch Customization
Beyond establishing your background hum level, the Legend’s audio feedback architecture lets you sculpt distinct pitch responses across the VDI spectrum.
You’ll access tone pitch adjustments through up/down arrows in the menu, with audible previews confirming each change before saving. Set your iron segment (1-10) to a low grunt for instant rejection, or increase it when deliberately targeting ferrous relics.
Mid-range segments (30-40) accept pitch values up to 17, enabling sharp differentiation between target classes. Beach hunters often configure 10-20 extremely low to isolate gold rings from trash.
Your custom pitches save automatically per mode and tone count—four-tone Park programs maintain separate profiles from six-tone Field setups.
Recovery speed influences tone duration: lower speeds lengthen your audio, higher speeds compress response windows for crowded sites.
Audio Gain Adjustments
Adjusting Audio Gain fundamentally alters how your Legend communicates target depth through volume modulation.
You’ll access this setting through the Settings button, scrolling to Volume Setting and selecting AG. This feature operates differently across modes—in Gold mode, audio gain directly controls threshold adjustments, while Park, Field, and Beach modes remain unaffected.
Optimal Audio Gain Configuration:
- Level 1-2: Maximum depth perception for cherry-picking targets in clean ground
- Level 3-4: Balanced depth modulation for general detecting and trashy environments
- Level 6: Equal volume amplification for all targets, eliminating depth differentiation
In Gold mode specifically, setting AG to maximum requires reducing your threshold to 3-6 to prevent overload.
Lower settings enhance your ability to distinguish shallow versus deep signals through natural volume variations.
Recovery Speed and Iron Rejection Controls
When metal detecting in environments ranging from pristine beaches to trash-laden parks, your ability to manipulate recovery speed directly determines whether you’ll isolate individual targets or miss them entirely in ground clutter.
Recovery speed adjustment operates on a 1-10 scale in Park and Field modes, with higher values sacrificing depth for superior target separation in trashy zones. You’ll start at default setting 5, then increase to 7-8 when hunting cluttered sites where multiple signals overlap.
Beach mode locks at 6 to counteract mineralized sand chatter.
Iron rejection benefits emerge through the integrated Iron Filter (0-8 scale), eliminating ferrous false signals while preserving non-ferrous targets.
Set Iron Filter to 8 for maximum rejection, or drop to 5 when deep targets sit near iron debris—preventing valuable finds from vanishing beneath discrimination thresholds.

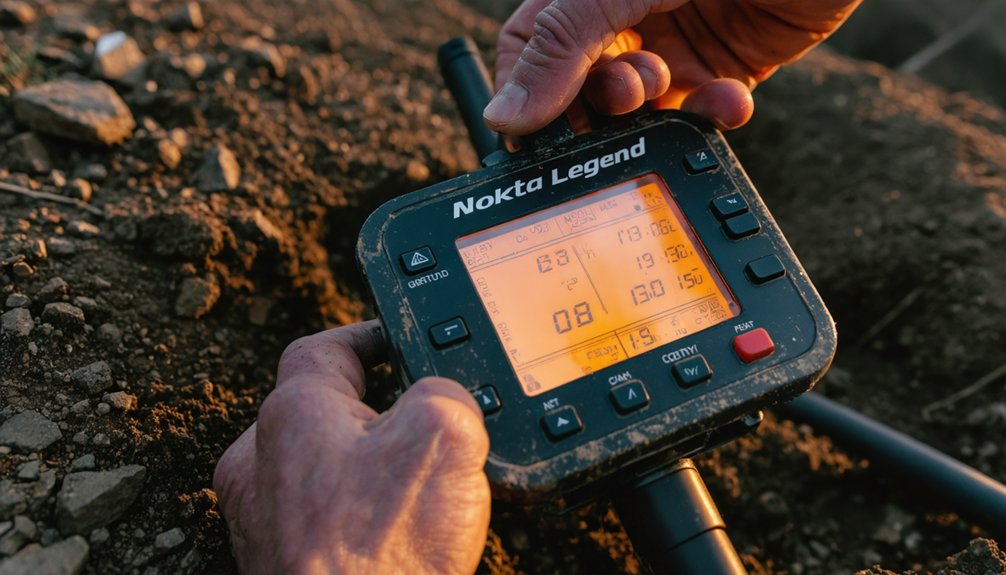

Ground Balance and Noise Cancellation Techniques
Ground balance calibration forms the foundation of signal stability, directly impacting your ability to distinguish targets from mineralized soil interference.
You’ll master three ground balance methods to eliminate false signals and maximize depth:
- Automatic: Press and hold the ground balance button while pumping your coil 1-8 inches above clean ground. Release when audio quiets and the phase number stabilizes.
- Manual: Adjust phase values using +/- buttons while sweeping over soil. Increase for low tones, decrease for high tones until ground response disappears—ideal for heavily mineralized terrain.
- Tracking: Activates continuous adjustment as soil conditions change, though it’ll sacrifice some depth compared to locked settings.
These noise cancellation techniques work independently across Park, Field, Beach, and Goldfield modes, giving you complete control over challenging ground conditions.
Optimizing Settings for Different Hunting Environments
Success in metal detecting hinges on matching your Legend’s settings to specific environmental conditions, where soil mineralization, target density, and ground conductivity create distinct challenges.
For urban parks, you’ll want Park Multi 1 with sensitivity adjustment between 20-25, paired with Recovery Speed 3-4 to separate coins from trash.
Field environments demand Multi 3 program with ground notching enabled, requiring sensitivity reductions to 15-18 in mineralized soil while maintaining Recovery Speed 5-6 for maximum depth.
Beach hunting splits into two approaches: wet sand requires Multi Wet mode with All Metal discrimination, Stability 5, and Ground Suppressor at 0.
You’ll maximize freedom by running sensitivity at 25-30 where salt conditions permit.
Dry sand allows higher recovery speeds and increased Iron Filter values for bottle cap rejection.
Battery Life and Physical Specifications
Power management separates productive hunting sessions from frustrating cutoffs in the field. Your Legend’s 5050mAh lithium polymer battery delivers 8-20 hours runtime, though real-world performance drops to 5-6 hours with power-hungry features like backlight and low frequencies.
The Legend 2’s 6700mAh lithium ion battery extends this by 33%, essential for wireless headphone users.
Battery longevity factors you’ll control:
- Operating frequency selection (lower frequencies drain faster)
- Backlight and flashlight usage patterns
- Audio output choice (speaker vs. headphones)
Expect 3-4 hour charging cycles from empty. The weight comparison favors Legend 2 at 2.6 lbs versus the original’s 3.0 lbs, while maintaining IP68 waterproofing to 16 feet.
Track your detecting hours through the lifetime counter for maintenance planning.
Firmware Updates and Advanced Feature Management
Your detector’s capability evolves through firmware updates that release performance improvements you won’t access otherwise.
V1.17, released October 2024, delivers enhanced beach mode discrimination and pinpoint stability for deep non-ferrous targets. Earlier versions introduced Iron Filter settings (V1.09) and dual ground balance capability (V1.15’s “Beast Mode”).
Version 1.17 brings critical beach mode improvements and pinpoint accuracy for deep targets that previous firmware couldn’t reliably detect.
For successful update installation, disconnect your computer’s firewall, use compatible USB cables, and keep the detector powered off during file extraction. After completing updates, restore factory defaults to eliminate conflicting saved profiles—this critical step prevents feature troubleshooting headaches.
Download platform-specific versions from noktadetectors.com’s metal detector section. Each release addresses real-world detection challenges: V1.17 specifically resolves mineral-rich environments misidentifying deep targets as ferrous, expanding your productive hunting range without compromise.
Frequently Asked Questions
Can I Use the Nokta Legend in Saltwater While Snorkeling?
Yes, you’ll excel at saltwater detecting while snorkeling with the Legend’s IP68 rating allowing 16-foot submersion. Use waterproof headphones and wet beach mode for peak performance. These snorkeling tips guarantee reliable target identification in challenging salt conditions.
What Causes My Detector to Randomly Vibrate During My Hunts?
Your detector’s random vibrations stem from three culprits: interference issues like EMI from power lines, detector settings with sensitivity above 15, or inadvertently activated vibration features. Check your sensitivity levels, run noise cancellation, and verify Recovery Speed’s Ir settings aren’t engaged.
How Do I Know When My Battery Needs Recharging?
You’ll know your battery needs recharging when the battery bars decrease noticeably or when “Lo” appears on your display. Watch these charging indicators closely—once “Lo” shows up, your detector’s about to shut down completely.
Does the LED Flashlight Drain Battery Faster Than Normal Detecting?
You’ll burn through your battery surprisingly fast with the LED on—flashlight performance adds significant drain beyond normal detecting. For battery conservation, disable it during hunts and only activate when you’ve actually found something worth recovering.
Can I Detect in the Rain Without Damaging Electronics?
Yes, you’ll detect safely in rain thanks to IP68 waterproof capabilities ensuring complete electronic safety. The detector’s fully submersible up to 10 feet, so rain won’t compromise performance. You’re free to hunt confidently in any weather conditions.
