When metal detecting with the Minelab Equinox 800, you’re working with six simultaneously transmitted frequencies — 4, 5, 10, 15, 20, and 40 kHz — delivering target data no single-frequency detector can match. Its 50-segment Target ID system, four environment-specific search modes, and 10-foot waterproof rating make it adaptable across parks, beaches, and mineralized fields. Master its settings and you’ll access performance most detectorists never fully tap.
Key Takeaways
- The Equinox 800 uses Simultaneous Multi-IQ technology, running six frequencies concurrently to accurately detect a wide range of targets in varied soil conditions.
- Four search modes—Park, Field, Beach, and Gold—each optimize detection for specific environments, with eight total sub-program configurations available.
- A 50-segment discrimination system assigns Target IDs, helping distinguish valuable targets like coins from ferrous trash efficiently.
- Ground balance should be manually calibrated before initial sweeps to preserve detection depth and Target ID accuracy in mineralized soil.
- The detector is waterproof to 10 feet, making it suitable for freshwater, saltwater, and surf zone detecting.
Why the Equinox 800 Outperforms Single-Frequency Detectors
When you’re hunting with a single-frequency detector, you’re fundamentally forcing every target through one narrow filter—and that’s where targets get missed.
The Equinox 800 eliminates that limitation using Simultaneous Multi-IQ technology, deploying 4, 5, 10, 15, 20, and 40 kHz concurrently. Each frequency interrogates targets differently—low frequencies penetrate deeper for high-conductivity coins while high frequencies resolve low-conductivity targets like thin gold.
For urban exploration in high-trash environments, this multi-frequency approach delivers stable Target IDs where single-frequency machines produce erratic signals.
When you’re chasing historical artifacts in mineralized soil, the automatic ground balance tracks shifting mineralization without manual adjustment, keeping your Target ID accurate at depth.
You’re not locked into one perspective—you’re reading every target across the full conductivity spectrum simultaneously.
Equinox 800 Search Modes for Every Detecting Situation
Whether you’re hunting a littered city park or wading a saltwater beach, the Equinox 800 gives you four primary search modes—Park, Field, Beach, and Gold—each engineered for a distinct detecting environment.
Park mode cuts through high-trash zones using aggressive discrimination techniques to isolate quality targets.
Field mode prioritizes target depth performance, pulling fine coins and artifacts from mineralized ground with precision.
Beach mode handles saltwater’s conductivity challenges, reliably detecting jewelry and small gold without false signals.
Gold mode, exclusive to the 800, leverages 40 kHz to chase nuggets in difficult terrain.
Each primary mode contains two sub-programs, giving you eight total configurations.
You can also store two custom Search Profiles per mode, keeping your preferred settings locked in and ready to deploy instantly.
Setting Up the Equinox 800 for Your Soil Type
Soil mineralization directly impacts your Target ID stability and detection depth, so dialing in the Equinox 800’s ground settings before you sweep is critical. Activate the automatic ground balance function and let the auto-tracking feature continuously adjust to shifting mineralization levels beneath your coil.
Dial in your ground balance before the first sweep — unstable mineralization kills depth and Target ID accuracy fast.
In heavily mineralized soil, lower your sensitivity to reduce false signals without sacrificing detection integrity.
Coil selection also matters — the included EQX 11-inch Double-D Smart Coil handles high-mineralization environments effectively, maintaining precise separation between legitimate targets and ground noise.
In saltwater or black sand conditions, switch to Beach mode and allow auto-tracking to compensate dynamically.
Adjust your Iron Filter conservatively to avoid masking low-conductivity targets buried deep in challenging ground.
These calibrations let you hunt confidently across any terrain.
Reading Equinox 800 Target ID Numbers Like a Pro
Once you understand the Equinox 800’s Target ID scale, you’ll sort trash from treasure with far greater confidence and speed. The system delivers 50 discrimination segments, with non-ferrous IDs spanning 1 to 40 and ferrous targets ranging from -19 to 0.
Target ID accuracy improves when you correlate specific numbers to known targets — copper coins typically register between 25 and 40, while nickels land near 13.
Discrimination customization lets you reject specific ID values through the accept/reject menu, giving you full control over what the detector signals. Raising the Iron Filter eliminates low-grade ferrous responses, but set it too high and you’ll miss small, low-conductivity targets.
Study your numbers, test known targets, and you’ll dig smarter on every site.

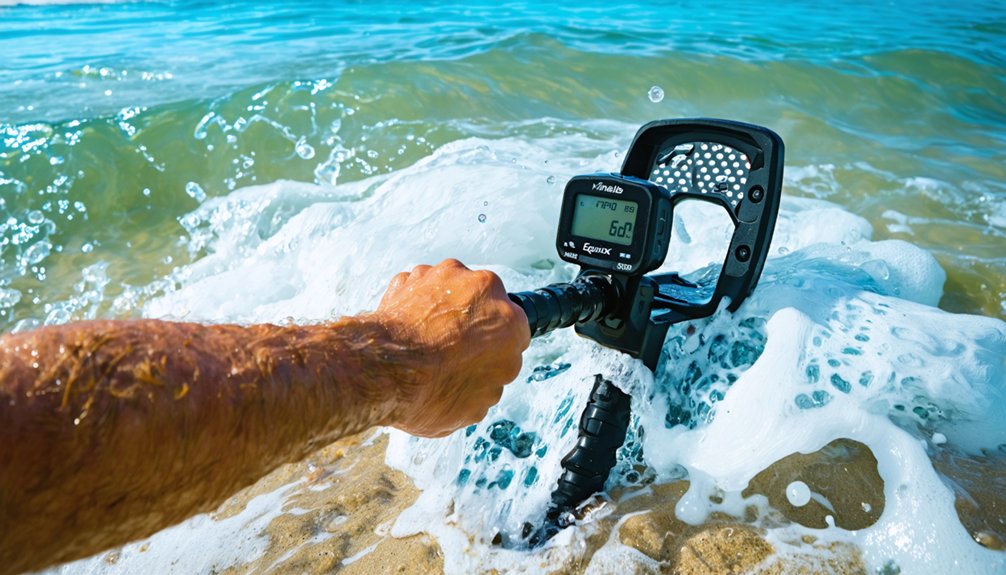

How the Equinox 800’s Waterproof Rating Performs in Salt and Fresh Water
Target ID mastery gives you an edge in the field, but the Equinox 800’s capabilities extend well beyond dry land. You’re cleared for underwater navigation down to 10 feet (3 meters), giving you full operational freedom in both fresh and saltwater environments.
The Beach mode handles saltwater corrosion-prone conditions effectively, filtering mineralized interference that would cripple lesser detectors. You can confidently work surf zones, river beds, and submerged ground without sacrificing Target ID accuracy.
The sealed housing protects internal components against saltwater corrosion, keeping your detector functional across repeated submersions.
Wireless audio via the WM 08 module maintains high-speed signal transmission even in wet conditions. Whether you’re wading tidal flats or crossing freshwater shallows, the 800’s waterproof rating delivers reliable, uncompromised performance.
Recovery Speed and Sensitivity Settings for Trashy or Mineralized Ground
When you’re hunting trashy or mineralized ground, the Equinox 800’s recovery speed and sensitivity settings become your most critical tuning variables. Dial these correctly, and you’ll pull targets others walk past.
In trashy or mineralized ground, recovery speed and sensitivity are everything — dial them right, or leave targets behind.
- Recovery speed adjusts up to 8, letting you achieve fast target separation in dense trash without losing signal clarity.
- Higher sensitivity amplifies depth but increases ground mineralization noise, so balance it carefully.
- Lower sensitivity stabilizes performance in heavily mineralized soils where false signals dominate.
- Auto ground balance continuously tracks shifting ground mineralization, reducing manual adjustments mid-hunt.
- Sweep speed must match your recovery setting — slower sweeps pair with lower recovery values for cleaner target separation.
Own these variables and the Equinox 800 transforms unpredictable ground into productive hunting territory.
Frequently Asked Questions
Does the Equinox 800 Include Wireless Headphones Straight Out of the Box?
Yes, you’ll get Wireless connectivity right out of the box — Bluetooth headphones and the WM 08 module are included. Pair them with Search profile customization to tailor your detecting experience precisely to your freedom in the field.
Can the Equinox 800 Detect Gold Nuggets Better Than Coins?
Like a bloodhound on a scent, yes — you’ll find the Equinox 800 excels at gold prospecting over coins, as its dedicated 40 kHz frequency cuts through mineralized soil, making treasure hunting for pure gold nuggets exceptionally precise.
How Many Custom Search Profiles Can Users Save on the Equinox 800?
You can save two custom search profiles per detect mode, giving you eight total slots for search profile customization across all four modes. This custom profile setup lets you tailor your detecting experience with complete freedom.
Does the Equinox 800 Shaft Differ From the 900 Model’s Build Material?
Yes, the Equinox 800’s shaft material differs in construction differences from the 900 model — you won’t get a carbon fiber shaft with the 800, whereas the 900 utilizes that premium, lightweight carbon fiber construction.
What Is the Maximum Submersion Depth for the Equinox 800 Detector?
While others fear the water, you don’t — your Equinox 800’s waterproof features let you push beyond the shore. Its depth limitations cap submersion at 10 feet (3 meters), keeping underwater treasure hunting fully within your control.
