You’ll maintain electrical line safety during detection by establishing minimum approach distances based on voltage ratings per NERC FAC-003 standards, using non-contact technologies like LiDAR (achieving 2-3 cm precision at 100 meters) and thermal imaging to identify hazards without physical proximity. Deploy autonomous UAVs with multi-sensor arrays to eliminate tower climbing risks while detecting conductor sag, vegetation encroachment within clearance zones, and structural defects. Integrate electromagnetic locating with Ground Penetrating Radar for underground utilities, and employ real-time GIS monitoring to coordinate field teams around energized assets. The following sections explore validation protocols that assure detection accuracy exceeds 94% while protecting personnel.
Key Takeaways
- LiDAR systems achieve millimeter-level accuracy for detecting conductor sag and vegetation encroachment, enabling precise safety clearance assessments during aerial surveys.
- Thermal imaging identifies hotspots in connectors and partial discharge testing detects early insulation damage, preventing electrical failures and enhancing grid resilience.
- Validation protocols use stratified sampling and cross-domain metrics above 0.98 to ensure detection reliability across diverse terrain and environmental conditions.
- Dense vegetation and structural obstacles create occlusion zones requiring multi-angle capture and adaptive algorithms to maintain detection accuracy above 97%.
- Proactive vegetation management reduces 40% of transmission outages through targeted pruning and seasonal inspections maintaining voltage-specific clearance standards.
Understanding LiDAR Technology for Power Line Monitoring
How do utility operators detect a sagging conductor before it sparks a catastrophic fault? You’ll find the answer in LiDAR’s light detection and ranging capabilities. This technology fires laser pulses that generate precise 3D point clouds, capturing wire profiles with millimeter accuracy. Systems like TOPODRONE’s Velodyne HDL32 employ 32 lasers reaching 100 meters with 2-3 cm XYZ precision through GNSS integration.
Proper sensor calibration guarantees your measurements meet regulatory standards while mapping vegetation encroachment and conductor sag. Each laser footprint captures multiple echoes in single scans, documenting power lines, towers, and surrounding hazards. Mission planning software accounts for terrain and tower positions to optimize flight paths during aerial surveys.
You’ll process trajectory data at 200 Hz, enabling automated classification of danger points. High-density point clouds enhance the accuracy of your 3D models for detailed surface analysis. Unlike traditional foot patrols that consume weeks, you’ll survey entire corridors in hours—maintaining grid reliability without bureaucratic delays or safety compromises.
Detection Methods for Transmission Line Inspection
LiDAR mapping reveals conductor sag patterns, but thorough transmission line diagnostics demand multiple detection technologies working in concert. You’ll need high-resolution drone cameras capturing insulator degradation and structural defects from multiple angles.
While thermal imaging exposes hidden hotspots in connectors that threaten power grid resilience. AI platforms analyze thousands of inspection images in minutes, correlating defect history with vegetation encroachment and line loading trends.
This automated approach guarantees weeks of manual review while identifying risks to battery safety infrastructure before failures cascade through your system. Partial discharge testing detects early localized insulation damage before deterioration progresses to complete failure. Native GIS integration ensures findings reach field teams immediately, enabling condition-based monitoring rather than periodic checks.
Microcracks and corrosion often remain undetected in inspection data until post-mortem analyses reveal their role in system failures. You’re shifting from reactive maintenance to predictive operations, reducing helicopter costs while deploying resources where actual risks exist.
Accuracy and Precision in Point Cloud Analysis
You’ll need to understand that transmission line classification achieves 94.9% accuracy with group normalization models, while PointNet++ reaches 92.9% instance-level accuracy on standard datasets.
However, occlusions from vegetation, terrain features, and hardware components directly compromise detection reliability and require validation through controlled testing protocols.
Your validation strategy must incorporate multiple dataset sources and establish Mean Intersection over Union benchmarks—currently 82.73% for power lines and towers—to verify classification performance meets regulatory safety standards. The model’s smaller size and faster inference enable real-time anomaly detection on resource-constrained UAV platforms during aerial inspections. The improved Random Forest approach enhances model stability against data variability inherent in complex corridor environments.
Point Cloud Detection Statistics
When evaluating point cloud data for electrical line safety applications, you’ll need to understand that scanner accuracy varies considerably based on equipment type and operational conditions. Terrestrial laser scanners deliver ±1mm to ±5mm accuracy, while handheld units provide ±5mm to ±20mm ranges. Your detection reliability depends critically on point cloud density—maintain minimum four points per square meter for adequate precision assessment.
Wireless interference can compromise data acquisition near high-voltage environments, affecting measurement consistency. Surface reflectivity of power line insulation notably influences ranging accuracy, requiring intensity-based error corrections. Shiny or dark surfaces can confuse laser sensors, necessitating adjusted scan parameters or alternative measurement approaches for reliable electrical infrastructure detection.
You’ll achieve ideal results within 30-60 meter scanning ranges, though accuracy degrades at extended distances. Standard Deviation Along Surface Normal (SDASN) analysis enables rigorous precision evaluation across project areas, ensuring compliance with safety clearance requirements. Final accuracy should be expressed as Root Sum of Squares Error, combining both surface fitting uncertainties and control point positioning errors to determine overall product reliability.
2. Occlusion Impact on Accuracy
Point cloud density measurements alone don’t guarantee accurate electrical line detection—occlusion effects introduce critical data gaps that directly compromise safety assessments.
Occlusion challenges increase with measuring range, creating uncertainty in point positions that can reach critical thresholds. You’ll face reduced self-localization accuracy when feature sufficiency drops below operational standards, making boundary ray ratio metrics essential for quantifying these gaps.
Data completeness becomes paramount when scattered missing areas exceed acceptable limits—concentrated occlusions perform better than dispersed gaps during reconstruction attempts.
Your terrestrial laser scanning operations must account for projection radius expansion requirements, especially where temporal point clouds reveal new occlusion zones. Structural feature visibility determines whether localization maintains accuracy even under high occlusion conditions, with building walls and poles serving as critical reference points.
Registration accuracy demands ground truth calibration through aerial imagery validation at 0.05-meter intervals, ensuring you maintain the precision needed for compliant electrical infrastructure assessments. Adaptive projection algorithms progressively increase cylinder radius and depth when initial parameters fail to establish sufficient point correspondence in occluded terrain.
3. Dataset Validation Methods
Robust validation frameworks separate training and testing datasets through strict spatial independence protocols—overlapping boundaries between these sets will invalidate your accuracy assessments and compromise regulatory compliance.
Dataset validation guarantees your electrical line detection models maintain model robustness across diverse operational environments without regulatory intervention.
Implement these critical validation standards:
- Stratified sampling allocations: Reserve 10% of category-specific training data for independent validation testing.
- Point density standardization: Flag or thin high-density hotspots from overlapping flight lines to eliminate classification bias.
- Cross-domain generalization metrics: Quantify performance ratios across unseen datasets, targeting benchmarks above 0.98.
Interactive point classification editing refines datasets before deployment.
Automated 3D Point Cloud Data Validation (3D-DaVa) pipelines systematically assess reliability across large-scale collections, reducing manual validation burdens while maintaining autonomous operational standards.
Drone-Mounted Systems for Corridor Surveillance
As utility operators face mounting pressure to maintain regulatory compliance while reducing inspection costs, drone-mounted systems have emerged as the primary technology for powerline corridor surveillance. You’ll find LiDAR scanners like RIEGL VUX-120 generating precise 3D point clouds that map conductor clearances to vegetation and structures.
Thermal cameras detect heat anomalies indicating imminent failures, while UV sensors identify corona discharges causing energy loss. These platforms eliminate hazardous tower climbs and helicopter flights, keeping your crews safe from high-voltage exposure.
Battery efficiency determines operational range—self-charging models now perch on electromagnetic fields for continuous patrols. You can deploy fleets of 100-1,000 units for grid-wide monitoring, detecting rust, corrosion, and encroachments before they trigger outages.
This proactive approach ensures adherence to regulations while cutting labor costs substantially.
Overcoming Occlusion and Environmental Obstacles
When you’re conducting electrical line inspections, dense vegetation and structural obstacles create occlusion zones that compromise detection accuracy and regulatory compliance.
Tree canopies and building facades block line-of-sight access, preventing complete assessment of conductor conditions and clearance violations.
You’ll need to implement dense point pattern solutions and multi-angle capture strategies to penetrate these environmental barriers and maintain the 99%+ detection rates required for hazard mitigation.
Tree and Building Interference
Trees represent the single largest cause of electrical outages according to the Federal Energy Regulatory Commission, creating a critical interface between natural growth patterns and infrastructure reliability.
You’ll face significant risks when vegetation contacts energized wires, including fire ignition, electrocution hazards, and power disruptions affecting thousands.
Building clearance requirements vary by line voltage, with transmission corridors demanding greater distances than distribution systems.
Critical interference management requires:
- Professional tree pruning by utility-contracted arborists—never attempt clearance work yourself near energized lines
- Proactive species selection considering 10-20 year growth projections and mature heights
- Seasonal corridor inspections identifying branches within dangerous proximity or swaying toward conductors
Fast-growing species and overhanging limbs pose escalating threats through abrasion, phase bridging, and storm-induced failures.
You’re responsible for vegetation planning that respects mandatory clearances while maintaining your property’s autonomy within regulatory frameworks.
Dense Point Pattern Solutions
While traditional visual inspection methods fail when vegetation obscures overhead conductors or soil conceals buried infrastructure, advanced detection technologies now provide precise mapping through environmental obstacles that previously compromised safety protocols.
You’ll achieve best results by combining electromagnetic locating with Ground Penetrating Radar—this dual approach cross-verifies findings and reduces false positives below 0.2% while maintaining detection rates exceeding 97%. For overhead lines, eigenvalue decomposition methods analyze point cloud density to segment wire conductors perfectly, even through dense foliage.
Three-parameter hyperbolic cosine equations approximate catenary curves with exceptional accuracy, proving robust against gaps in data collection.
When clay soil conditions challenge GPR performance, you can adjust settings and rely more heavily on electromagnetic locating to trace conductive infrastructure. This flexibility ensures you’re never restricted by environmental limitations.
Cost-Effective Alternatives to Traditional Patrol Methods
For thorough coverage, you’ll implement layered detection strategies:
- Primary electromagnetic detection for conductive infrastructure using single-frequency devices.
- Ground penetrating radar deployment for non-metallic materials including PVC and fiber optic cables.
- Acoustic methods as supplementary confirmation for pressurized systems and gas lines.
This multi-technology approach reduces excavation incidents while maintaining regulatory compliance without requiring continuous advanced training investments.
Deep Learning Applications in Risk Prediction
As regulatory frameworks increasingly mandate predictive maintenance protocols, deep learning algorithms transform raw sensor data into actionable risk assessments for underground cable systems.
You’ll leverage convolutional neural networks trained on partial discharge defects to achieve 95% classification accuracy after hyperparameter optimization.
LSTM networks pinpoint defect locations across 10 cable segments with 94% precision, while ResNet-50 architectures identify specific fault types from 3,390 PRPD plots at 96% accuracy.
For overhead infrastructure, you can deploy logistic regression models that predict line failures with 0.84 testing ROC AUC scores by analyzing length, environmental exposure, and tower construction.
Conv-GRU networks with attention mechanisms forecast lightning strikes, particularly during high-risk weather events.
These neural network applications eliminate guesswork, letting you allocate maintenance resources based on quantifiable severity factors rather than arbitrary inspection schedules.

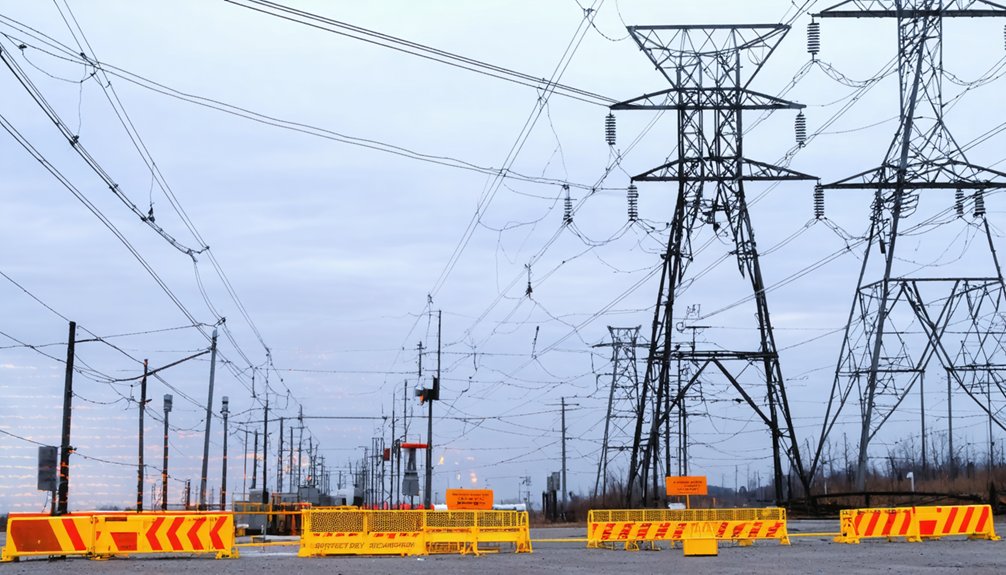

Automated Processing for Security Threat Identification
When electrical infrastructure spans thousands of miles across diverse terrain, manual threat detection becomes operationally untenable and introduces unacceptable vulnerability windows. You’ll need automated processing systems that classify threats without constant human oversight while maintaining your operational independence.
Modern security architectures deploy:
Modern security architectures deploy automated behavioral analytics, wireless mesh networks, and PLC-driven threat classification systems to protect critical infrastructure without constant human oversight.
- Behavioral analytics with signature-based detection that identify sophisticated attacks on generation, transmission, and distribution assets in real-time
- Wireless mesh networks integrating perimeter sensors across zones extending 1,000 feet with 22 configurable sensitivity levels
- PLC-driven threat classification systems processing sensor inputs to trigger immediate HMI alerts and coordinate responses through PSIM software
These integrated solutions provide prescriptive playbooks for anomaly detection, including misconfigured RTUs and lateral movement attempts, while supervised signals automatically notify authorities of genuine security events.
Vegetation Management Through 3D Modeling
While automated systems detect immediate security threats to your infrastructure, vegetation-related failures account for 40% of transmission line outages and present the highest wildfire ignition risk.
LiDAR technology delivers centimeter-level accuracy through dense point clouds, measuring clearance distances between conductors and encroaching vegetation. You’ll identify sagging lines and tilting structures before they fail.
Deep learning classification separates power lines, poles, and vegetation growth within 3D point clouds, prioritizing sites where trees are above, below, or intertwined with wires. Asset coloring in web-based platforms lets you view poles, towers, conductors, and insulators remotely.
Mathematical risk models combine treefall probability with consequence analysis, enabling targeted management instead of widespread corridor clearing. This precision guarantees NERC FAC-003 compliance while preventing outages and wildfires through proactive intervention.
Frequently Asked Questions
What Safety Protocols Protect Workers During Lidar Equipment Installation on Power Lines?
Before you saddle up, you’ll complete mandatory safety training covering grounding procedures, electrical isolation protocols, and equipment staging. Trained personnel establish safety perimeters, verify power isolation, and maintain separate power sources preventing electrical interference during installation.
How Do Electromagnetic Fields From Transmission Lines Affect Lidar Sensor Accuracy?
Electromagnetic interference from transmission lines disrupts your LiDAR’s emission and reception circuits, causing signal distortion that compromises distance measurements. You’ll need proper shielding countermeasures—including conductive gaskets and ferrite cores—to maintain accurate obstacle detection and autonomous operation.
What Personal Protective Equipment Is Required for Drone Operators Near Energized Lines?
You won’t need traditional personal protective equipment since you’ll operate from the ground, maintaining 100-200 feet from energized lines. Drone safety relies on distance protocols and remote sensing rather than insulated gear that restricts your movement.
Can Lidar Detection Systems Identify Electrical Arc Hazards in Real-Time?
No, LiDAR can’t detect electrical arcs—it’s designed for physical objects, not electrical phenomena. You’ll need dedicated arc fault detection devices that monitor electrical interference signatures. Proper sensor calibration guarantees reliable protection against these invisible hazards.
What Minimum Clearance Distances Are Mandated Between Drones and High-Voltage Conductors?
Like invisible safety bubbles protecting your flight, drone safety clearance regulations mandate you maintain 100–150 feet horizontally and 50 feet vertically from high-voltage conductors, ensuring your operations stay compliant while preserving equipment and preventing catastrophic electrical incidents.
