Bullet caliber refers to a projectile’s diameter, measured in inches or millimeters, and it’s your fastest tool for identifying what you’ve dug up. A .308-inch measurement points to .308 Winchester or 7.62mm military rounds, while 0.224 inches indicates 5.56mm NATO or .223 Remington. You’ll also cross-reference case length and overall length to distinguish similar rounds. Understanding these numbers transforms raw finds into documented historical evidence, and there’s far more to caliber identification than diameter alone.
Key Takeaways
- Bullet caliber refers to the projectile’s diameter, measured in inches or millimeters, helping metal detectorists identify firearm type and historical era.
- Three essential measurements—diameter, case length, and overall length—enable accurate caliber identification when cross-referenced against a caliber chart.
- Rimfire cases have smooth bases without a central primer pocket, while centerfire cases feature a distinct circular primer pocket.
- Bullet weight provides additional identification clues: lightweight bullets suggest .22LR, mid-range weights indicate 5.56mm, and heavy specimens point to .308.
- Calibers found at a site reveal its history—.22LR suggests recreational use, while .58 Minié balls confirm Civil War-era activity.
What Is Bullet Caliber and Why Does It Matter for Detectorists?
Bullet caliber refers to the diameter of a projectile, measured either in inches or millimeters — and for detectorists, it’s the primary identifier when you pull a spent round from the ground.
Caliber significance extends beyond simple measurement; it connects you directly to the firearm type, historical era, and geographic context of your find. A .58 caliber Minié ball points to Civil War infantry. A 7.62mm base-notched cast bullet suggests post-war manufacture.
These detectorist insights sharpen your ability to date sites and authenticate relics without laboratory equipment. You’re working with physical dimensions — diameter, case length, primer pocket presence — cross-referenced against known caliber charts.
When you measure accurately and match precisely, each recovered projectile transforms from unidentified metal into documented historical evidence.
How Detectorists Use Caliber Charts to ID Bullet Finds
When you recover a bullet in the field, your first step is measuring its diameter with calipers and cross-referencing that measurement against a caliber chart to narrow down the cartridge type.
A .308-inch reading points you toward .308 Winchester or 7.62mm military rounds, while a 0.224-inch measurement aligns with 5.56mm NATO or .223 Remington.
You’ll sharpen your ID further by comparing case length, primer type, and deformation patterns against historical caliber references, particularly for Civil War-era finds like the .58-caliber Minié or .69-caliber buck and ball.
Measuring Diameter for Identification
Three core measurements help you confirm a bullet find: diameter, case length, and overall length.
You’ll achieve caliber accuracy by starting with diameter—measure across the bullet’s widest point using digital calipers. A reading of 0.308 inches confirms .308 Winchester; 0.355 inches points to 9mm Parabellum.
Your identification techniques sharpen when you cross-reference all three measurements.
Case length distinguishes similar-diameter rounds—5.56mm runs 1.700 inches versus .22LR’s 0.613 inches. Overall length separates spent cases from live rounds in the field.
Convert between metric and imperial freely: 7.62mm equals .30 caliber, 9mm equals 0.355 inches.
Document measurements before cleaning your find, since deformation from impact can shift readings slightly. A caliber chart confirms your numbers definitively.
Cross-Referencing Historical Caliber Charts
Caliber charts become your primary verification tool once you’ve recorded raw measurements from a find. Cross-referencing your diameter against established historical context eliminates guesswork and confirms caliber significance quickly.
Match your measurements against these key cross-references:
- 7.62mm equals .30 caliber — confirms post-Civil War military or modern cast rifle bullets
- 5.56mm equals .224 inches — identifies NATO-standard tactical rounds distinct from older varmint loads
- .58 caliber Minie balls at 0.575 inches — places your find squarely in Civil War battlefield context
Greg Sites’ Civil War bullet reference guide strengthens your field verification beyond basic diameter charts.
You’re not guessing — you’re systematically eliminating possibilities.
Stack your measured diameter, case length, and primer type together, then run all three against period-accurate caliber charts for a definitive identification.
Rimfire vs. Centerfire: How to Tell Them Apart in the Field
When you examine a spent case’s base, the absence of a central primer pocket immediately marks it as rimfire — the firing pin struck the folded rim, leaving no recessed cup.
Centerfire cases, by contrast, show a distinct circular primer pocket at the base’s center, often retaining a spent primer or a visible empty cavity after ejection.
You can use this single physical distinction to split your finds into two categories before cross-referencing caliber diameter, case length, or grain weight for precise identification.
Identifying Rimfire Primer Absence
One of the fastest field distinctions you’ll make as a detectorist is separating rimfire from centerfire brass — and the primer pocket tells the whole story.
Flip the casing base-up. Rimfire identification relies on one simple rule: there’s no center primer pocket. Instead, you’ll see a flat or slightly hollow base with no indentation.
Look for these three markers during primer absence verification:
- No center pocket — the base appears smooth or uniformly recessed
- Rim ignition groove — a thin channel runs along the inner rim edge
- Smaller diameter — .22LR measures 0.613 inches case length, confirming scale
Centerfire cases show a distinct, recessed primer cup seated dead center.
Once you’ve trained your eye on this contrast, rimfire identification becomes an automatic, split-second call in the field.
Centerfire Primer Pocket Distinctions
Flip any centerfire casing base-up and you’ll immediately spot the defining feature: a recessed primer pocket centered precisely in the base, housing a replaceable primer cup.
Primer pocket identification becomes straightforward once you recognize two distinct sizes: small and large. Small rifle primers seat in .223/5.56mm and .308 Winchester cases, while large pistol primers occupy .45 ACP and 10mm Auto bases.
Centerfire cartridge variations extend further — military brass often features crimped primer pockets, leaving a ringed indent around the primer cup edge. You’ll distinguish this from commercial brass, which shows a clean, smooth pocket wall.
Measure pocket diameter with calipers: small rifle runs approximately 0.175 inches, large pistol around 0.210 inches. These measurements give you independent verification when caliber markings are worn beyond legibility.
Common Rifle Bullet Calibers Detectorists Dig Up Most
Whether you’re hunting old farmsteads, military ranges, or Civil War sites, certain rifle calibers turn up far more consistently than others in your finds pouch. Understanding bullet history and caliber evolution sharpens your identification speed considerably.
Three rifle calibers dominate most digs:
- .22LR — rimfire, 0.223-inch diameter, intact recovery common due to low energy impact
- .308 Winchester — 0.308-inch diameter, heavy deformation from 1,377 ft⋅lbf energy, frequent on ranges
- 5.56mm NATO — 0.224-inch diameter, 55-77 grain projectiles, abundant on military and tactical sites
Measure diameter first, then examine the base for rimfire edges or primer pockets.
Cross-referencing those two data points eliminates guesswork and correctly places your find within the documented caliber evolution timeline.

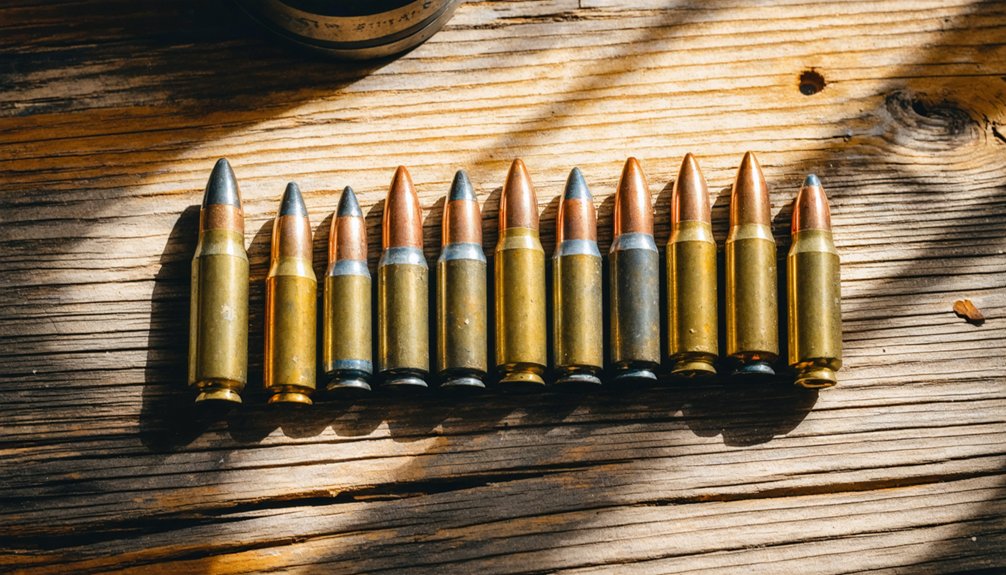

Handgun Bullet Calibers Most Likely to Turn Up on a Dig
Four handgun calibers account for the majority of pistol and revolver finds you’ll recover across most site types: 9mm Parabellum (0.355-inch diameter), .45 ACP (0.452-inch diameter), .38 Special (0.357-inch diameter), and .357 Magnum (0.357-inch diameter).
Notice that .38 Special and .357 Magnum share identical bullet diameters — caliber significance here shifts to case length, not width. The .357 Magnum runs a longer case to generate higher pressure and energy.
Among handgun relics, .45 ACP’s heavy 0.452-inch projectile deforms distinctively on impact, making identification straightforward even on damaged specimens.
The .45 ACP’s massive 0.452-inch projectile deforms unmistakably on impact — even battered specimens practically identify themselves.
The 9mm’s smaller diameter and high velocity produce a cleaner recovered profile.
Cross-referencing diameter measurements against case condition and deformation patterns lets you distinguish these four calibers confidently without guesswork.
What Deformation and Weight Tell You When Identifying a Dug Bullet
Once you’ve recovered a bullet, two physical properties — deformation pattern and weight — do most of the identification work before you ever consult a caliber chart.
Deformation patterns reveal impact energy. Higher-energy rounds like the .308 show aggressive lead smear and mushrooming, while low-energy .22LR rounds often surface nearly intact.
Weight significance becomes your secondary filter:
- Lightweight finds (30–40 grains) point toward .22LR or varmint-class rounds
- Mid-range weights (55–77 grains) suggest 5.56mm or .223 Remington tactical loads
- Heavier specimens exceeding 150 grains indicate .308, .30 caliber, or large handgun rounds
Cross-referencing both properties narrows your identification considerably.
A heavily deformed, lightweight bullet tells a different story than an intact heavy one — read both before reaching any conclusion.
Civil War and Historical Bullet Calibers Worth Knowing
Modern bullet identification relies heavily on deformation and weight, but when your detector pulls a signal from a Civil War site, those same analytical tools apply to a completely different class of projectiles. Historical calibers differ markedly from modern rounds, so knowing them sharpens your relic recovery accuracy.
Two bullet types dominate Civil War battlefield artifacts:
- .58 caliber Minié ball: 0.575-inch diameter, swaged grooves visible on recovered specimens
- .69 caliber buck and ball: Larger smoothbore lead projectile, often recovered with scattered buckshot nearby
Caliber significance here shifts toward diameter measurement and casting marks rather than case identification, since these are projectile-only finds.
Greg Sites’ reference guide remains a reliable field companion for bullet identification among common finds. Understanding this historic context separates serious relic hunting from guesswork.
What Your Bullet Caliber Reveals About the Hunt Site
Every bullet caliber you pull from the ground tells a story about who used that land and when. Identifying calibers lets you reconstruct bullet history and assess hunting impact on a specific site.
Use these caliber clues to read your location:
- .22LR or .38 Special finds suggest recreational shooting, small-game hunting, or homestead defense activity.
- .308 Winchester or 7.62mm recoveries indicate military presence, serious big-game hunters, or organized range use.
- .58 Minie or .69 buck and ball confirms Civil War-era battlefield or encampment ground.
Cross-reference diameters against your caliber chart before drawing conclusions. A cluster of mixed calibers points to multi-era activity, while uniform finds narrow your timeline.
You’re not just detecting metal — you’re reconstructing independent land use history precisely.
Bullet Caliber Cheat Sheet: .22 Through .69 Caliber Compared
A quick-reference cheat sheet cuts your field identification time markedly, so here’s how every major caliber from .22 through .69 stacks up in diameter, grain weight, and detection context.
.22LR — 0.223″, 30–40 gr, rimfire, shallow bullet recovery depth.
5.56mm/.223 — 0.224″, 55–77 gr, NATO tactical, centerfire.
.308 Win/7.62mm — 0.308″, heavy deformation on impact, up to 1,377 ft⋅lbf energy.
.38/.357 — 0.357″, revolver rounds, distinct case length differences signal caliber significance.
.45 ACP — 0.452″, battlefield relic heavyweight.
.58 Minié — 0.575″, Civil War standard, swaged grooves confirm ID.
.69 Buck-and-Ball — 0.69″, smoothbore scatter pattern, multiple lead balls expected nearby.
Cross-referencing diameter against grain weight accelerates accurate bullet recovery identification every time.
Frequently Asked Questions
Can Bullet Caliber Help Determine the Approximate Age of a Find?
Caliber certainly can confirm historical context—you’ll trace manufacturing evolution through diameter and design. Civil War .58 Minié balls, rimfire .22LR primers, and 7.62mm gas-check notches each precisely pinpoint distinct production eras for your finds.
Are There Legal Restrictions on Collecting Spent Bullets From Certain Dig Sites?
Yes, you’ll face legal implications on federal, state, or protected sites. Always check permit requirements before digging. Ethical considerations matter too — respect private property rights and historical preservation laws to stay compliant and maintain your detecting freedom.
How Do Soil Conditions Affect Bullet Preservation and Caliber Measurement Accuracy?
Soil pH below 5.5 accelerates lead corrosion by 40%. You’ll find soil acidity and moisture levels distort bullet diameters, compromising caliber measurement accuracy. Drier, neutral soils preserve specimens best, ensuring reliable identification.
What Tools Do Detectorists Use to Accurately Measure Recovered Bullet Diameters?
You’ll rely on caliper tools as your primary measurement techniques for recovered bullets. Slide the digital calipers around the diameter, read the inches or millimeters, then cross-reference your caliber chart to confirm accurate identification independently.
Can Two Different Calibers Produce Identical Metal Detector Signals Underground?
Separate signals sometimes seem similar—yes, two different calibers can produce identical underground readings. Your caliber comparison demands careful signal interpretation, since soil depth, oxidation, and mass overlap can mislead you, so you’ll always need physical measurement.
